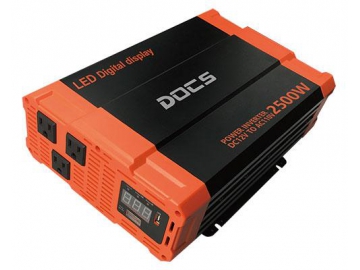

DC-AC Power Inverter 12V/24V 2500 Watt Pure Sine Wave Inverter
This is a high power inverter that provides power to higher powered appliances. Because its higher power also generates more heat, we have designed this power inverter with an intelligent cooling fan. The rotation speed will increase as the inverter’s working temperature increases, and will decrease when the heat lowers in the inverter. The fan will stop working completely when the inverter is paired with low power appliances in order to save power and ensure the safety of the power inverters. We also added a mute function to the fan, ensuring there is no noise pollution, even when rotating at high speeds.
Basic information for the inverter is shown below, and we strongly encourage you to contact us for more information if needed.
Parameters
- Continuous Power: 2500W
- Peak Power: 5000W
- Overpower Protection: 2800W
- Rated Input Voltage: 12V/24V
- Rated Output Voltage: 230V/110V
- Output Frequency: 50HZ/60HZ
- Quiescent Current: ≤0.65A
- Full-load Efficiency: ≥88%
- Maximum Efficiency: ≥92%
- Full-load Distortion (Resistive Load): ≤3%
- Start-up Mode: Soft start
- Overload Protection: Manual reset
- Short-circuit Protection: Manual reset
- Input Over-voltage Protection: 15V/30V
- Input Low-voltage Alarm: 11V/22V
- Input Under-voltage Protection: 10V/20V
- Under-voltage Recovery: 11.8V/23.6V
- Over-temperature Protection: YES
- Reverse Voltage Protection: Blown fuse
- Size (H*W*L): 82.5*220*393MM
- Net Weight: 5.21KG
