250mm-500mm Plastic Pipe Welding Machine

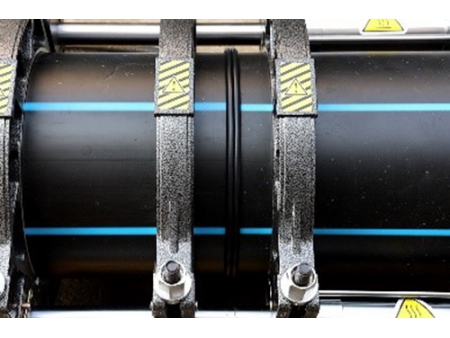

The pipe fusion machine is used for the butt fusion welding of plastic pipes and fittings made from HDPE, PP, PVDF and MPP materials.

  • Model: WP500A
  • Welding range: 250-500 mm
  • Applicable pipe diameters: 250-280-315-355-400-450-500 mm
  • Power supply: 380 V/50Hz, 3PH
  • Total power: 9.1 kW
  • Heating plate: 6.5 kW
  • Planing tool: 1.1 kW
  • Hydraulic station: 1.5 kW
  • Pressure adjusting range: 0-8.0 MPa
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±7 ºC
Application

WELPING butt fusion welding machine is applicable to jointing HDPE, PP, PVDF, MPP pipes.

Features

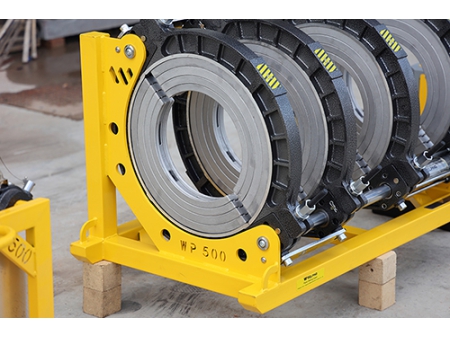

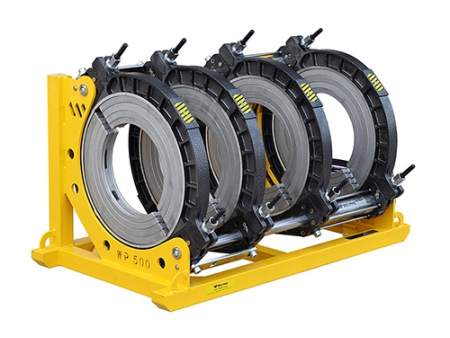

  • The machine frame is sturdy and distortion-free, ideally suitable for heavy-duty applications.

  • Steel plates of the machine frame are precisely cut to achieve high precision and aesthetic appearance.

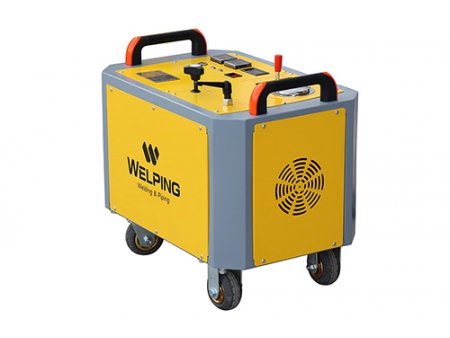

  • Enclosed hydraulic station is designed to prevent dirt or water. LCD display panel and data logging device are optional upon request.

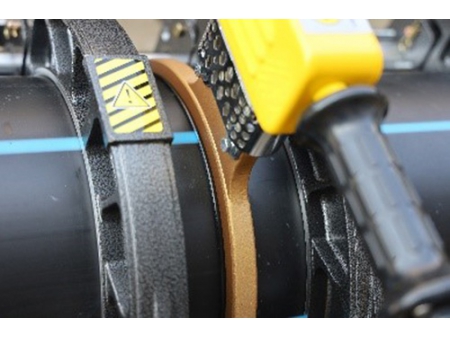

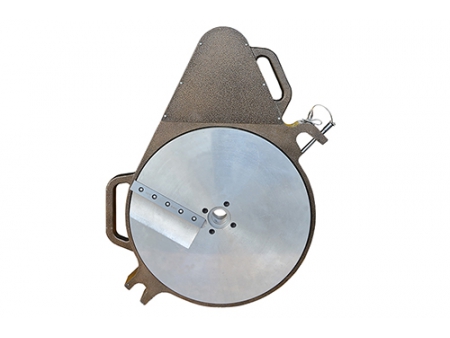

  • Copper coil motor has a self-locking system to prevent damages caused by misoperation. High-speed steel reducer inserts with double cutting edges are highly durable.

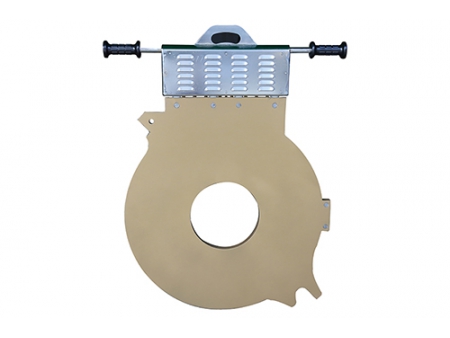

  • High quality resistance wire delivers efficient and even heating performance. The heating element is applied with superior Dupont or Daikin coating.
