ATM USB Camera
ATM USB Camera
The D-VITEC ATM USB camera is designed for usein bank ATM and POS systems.
Different from normal USB camera, our USB cameras are specially designed for industrial 24-hour surveillance. We have both CCD type and 2M pixel cmos type. True color image and low light performance are most important unsurpassable features.
Technical Specifications
| Picture | ||

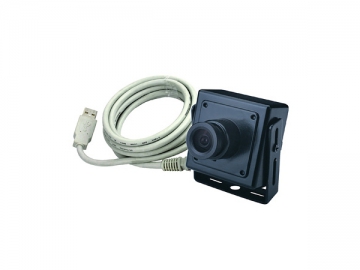

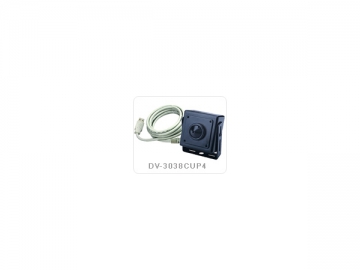

| Model | DV-3038CU ATM USB Camera | DV-3038CUP4 ATM USB Camera |
| Image sensor | 1/4" Progressive Scan Color CCD SONY | 1/4" Progressive Scan Color CCD SONY |
| Effective pixels | 659(H)X494(V) | 659(H)X494(V) |
| Synchronizing system | Internal | Internal |
| Scanning system | Progressive Scan | Progressive Scan |
| Video output | VGA(640X480), CiF(352X288), SiF(320X240) | VGA(640X480), CiF(352X288), SiF(320X240) |
| S/N ratio | More then 48 dB (AGC Off) | More then 48 dB (AGC Off) |
| Min. Illumination | 1.0Lux | 1.0Lux |
| Exposure | Auto | Auto |
| White balance | Auto | Auto |
| Gamma characteristic | Auto r=0.45 | Auto r=0.45 |
| Picture | Brightness / Contrast / Gamma / Saturation | Brightness / Contrast / Gamma / Saturation |
| Power source | 5.7VDC through USB port | 5.7VDC through USB port |
| Operating current | Regulated 5.7VC through USB port | Regulated 5.7VC through USB port |
| Lens | 2.97mm, 2.1MM Lens , | 2.5mm Lens |
| Operating Temperature | 0℃∼40℃ (Humidity : 0% RH∼80% RH) | 0℃∼40℃ (Humidity : 0% RH∼80% RH) |
| Interface type | USB format(Complies with USB 2.0) | USB format(Complies with USB 2.0) |
| Measurement (mm) | 38*38mm | 38*38mm |
| Weight (Approx.g) | 0.25KG | 0.25KG |
| Picture | |||
| Model number | DV-3034CUP4-130 ATM USB Camera | DV-3034CU ATM USB Camera | |
| Image Sensor | 1/3.2" Micron CMOS(2.0 Megapixel) | 1/3.2" Micron CMOS(2.0 Megapixel) | |
| Resolution | 1600×1200 pixels(UXGA);1024×768 pixels(XGA); 800×600 pixels(SVGA);640×480 pixels(VGA);320×240 pixels(QVGA); | 1600×1200 pixels(UXGA);1024×768 pixels(XGA); 800×600 pixels(SVGA);640×480 pixels(VGA);320×240 pixels(QVGA); | |
| System | Windows 2000;Windows XP; Windows VISTA; Windows 7; Linux(In 2.6.18 above the kernel version);Mac ps3 | Windows 2000;Windows XP; Windows VISTA; Windows 7; Linux(In 2.6.18 above the kernel version);Mac ps3 | |
| Rate | VGA & QVGA 30 fps; XGA 15 fps; UXGA 8 fps | VGA & QVGA 30 fps; XGA 15 fps; UXGA 8 fps | |
| Image processing | Auto light exposure control; Auto white balance control; | Auto light exposure control; Auto white balance control; | |
| Dimension | 34×34mm | 34×34mm | |
| Operating temperature | ﹣10℃～﹢50℃ | ﹣10℃～﹢50℃ | |
| Storage temperature | ﹣20℃～60℃ (Humidity : 0% RH ~ 85% RH) | ﹣20℃～60℃ (Humidity: 0% RH ~ 85% RH) | |
| MTBF | 130 thousand hours | 130 thousand hours | |
| Video output | USB 2.0 | USB 2.0 | |
| Power supply | DC 5V | DC 5V | |
| Focal length | 2.8mm±5%; | 2.97mm±5%; | |
| Angular field or view | 125°(Diagonal Line) | 125°(Diagonal Line) | |
| IRIS | FIX IRIS | FIX IRIS | |
| This ATM USB camera eliminates the need for installing the driver, plug and play. Start the default resolution for 640×480 pixels (VGA). | |||
D-VITEC is a China-based ATMUSB camera manufacturer and supplier. Weoffer ATM USB cameras, 4 channel DVRs, brackets and so on. Our high quality products are offered atcompetitive prices. We can supply the fullchain of manufacturing fingerprint sensors, face recognition cameras, etc. right here in
