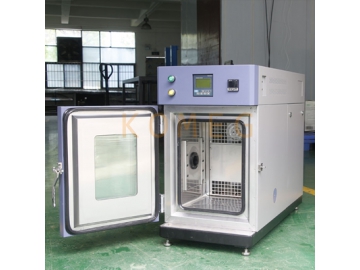

Benchtop Environmental Test Chamber for Temperature and Humidity Testing, Item KMH-36 Constant Climate Simulation Chamber
| Type | KMH-36R | KMH-36L | KMH-36S |
| Temperature range | -20 °C ~150°C | -40°C ~+150°C | -60°C ~+150°C |
| Interior dimension (W*H*D) | 300*400*300mm | 300*400*300mm | 300*400*300mm |
| Exterior dimension (W*H*D) | 460*780*1020mm | 460*780*1020mm | 460*780*1020mm |
| Power (KW) | 4.5 | 4.5 | 4.5 |
| Weight (KG) | 150 | 150 | 150 |
| Humidity deviation | ±3.0%R.H | ±3.0%R.H | ±3.0%R.H |
| Heating rate | -20°C~+100°C, within 35 minutes | -40°C~+100°C, within 45 minutes | -60°C ~+100°C, within 85 minutes |
| Freezing rate | +20°C ~-20°C, within 45 minutes | +20°C ~-40°C , within 60 minutes | +20°C ~-60°C, within 80 minutes |
| Freezing system | Air cooling | ||
| Total hermetically-sealed compressor, single-stage compression refrigeration | |||
| Environmental friendly refrigerants:R404, R23 | |||
| Humidity range | 20~98%R.H | ||
| Temperature fluctuation | ±0.5°C | ||
| Humidity fluctuation | ±2.5%R.H | ||
| Temperature uniformity | ±2.0°C | ||
| Working temperature | +5°C ~+35°C | ||
| Power source | AC 380±10%50Hz, three-phase four-wire and ground connection | ||
