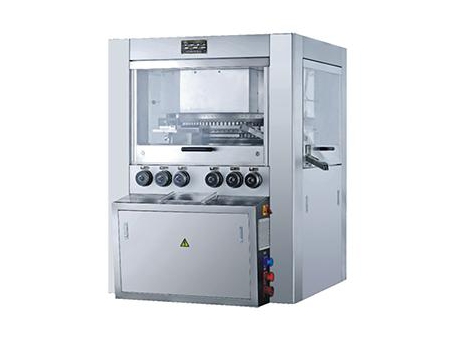

High Speed Rotary Tablet Press GZP(K)730
This high-speed rotary tableting press is designed for flexible production as it can press two-layer tablets, annular tablets, round tablets, engraved tablets and irregular tablets in different colors. It comes with a separate control cabinet to control the high-speed rotary tableting press and separated production area. Within the machine, tablets are formed twice by the main press tool and the pre-press. This high-speed rotary tableting press is suitable for applications in pharmaceutical, food, and chemical industries.
Specification:
| Model | GZP(K)-51 | GZP(K)-63 | GZP(K)-75 | GZP(K)-81 |
| Number of Stations | 51 | 63 | 75 | 81 |
| Tooling Type | D | B | BB | BBS |
| Main Compression Force (kN) | 100 | 100 | 100 | 100 |
| Pre Compression Force (kN) | 100 | 100 | 100 | 100 |
| Maximum Tablet Diameter (mm) | 25 | 18 | 13 | 11 |
| Depth of Fill (mm) | 20 | 18 | 15 | 15 |
| Maximum Tablet Thickness (mm) | 8 | 7 | 6 | 6 |
| Max. Turret RPM (r/min) | 70 | 70 | 70 | 70 |
| Max. Output (pcs/h) | 428400 | 529200 | 630000 | 680400 |
| Motor Power (kW) | 15 | 15 | 15 | 15 |
| Overall Size (mm) | 1780x1660x1920 | 1780x1660x1920 | 1780x1660x1920 | 1780x1660x1920 |
| Approx. Net Weight (Kg) | 4800 | 4800 | 4800 | 4800 |
