Mold Temperature Controller, YK-D-15A Series Manufacturer

Mold Temperature Controller, YK-D-15A Series

: http://moldingmachinepart.com/1-1-hot-runner-temperature-controller.html

The YK-D-15A hot runner temperature controller uses a single control card for independent control over a single temperature stage. Each control card is fully interchangeable.

Functions

The use of FUZZY PIDD control technology allows this equipment to adapt to different heating modes, even when there are no PID parameters set. This significantly improves the working efficiency.
An automatic ambient temperature linear compensation enhances the hot runner temperature controller's accuracy.
Automatic cold junction compensation prevents any errors caused by changes in the environmental temperature.
Temperature memory function: if the temperature controller is cut off while in a constant temperature condition, the temperature controller will alarm and automatically remember temperature parameters, then maintain the temperature to prevent production downtime loss caused by an open thermocouple.
Alarms and protection functions.

Unique advantages

Alarm for wrong connections in the hot runner power lines and temperature controller lines. This is one of Yikai's patented technology pieces, ensuring customers can prevent production losses caused by a shorted thermocouple.
Alarm for neutral wire loss or incorrect connections of the neutral wire or live wire. The YK-D-15A hot runner temperature controller effectively eliminates economic losses caused by shorted temperature controllers.

Technical specifications

Item	Spec.
Supply voltage	185-250VAC
Frequency range	50-60HZ
Operating temperature	-20—60℃
Storage temperature	-30—70℃
Fuse	16A10×38mm
Thermocouple	Type J or Type K (software selectable)
Temperature range	45—537℃
Sample rate	0.1S
Measurement accuracy	0.1℃
Temperature control accuracy	±0.5℃
Control modes	PIDD or PID
Output power	0—3.6KW

Default setting

Item
Thermocouple	Type J
Upper limit of high temperature alarm	30℃
Lower limit of low temperature alarm	-30℃
Temperature unit	Degrees Celsius, ℃
Control mode	PIDD
Soft start	ON

Product gallery

YK-D-15A-1 L250*W120*H230mm

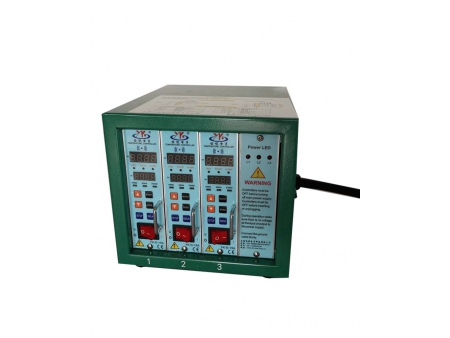

YK-D-15A-(2-3) L250*W320*H230mm

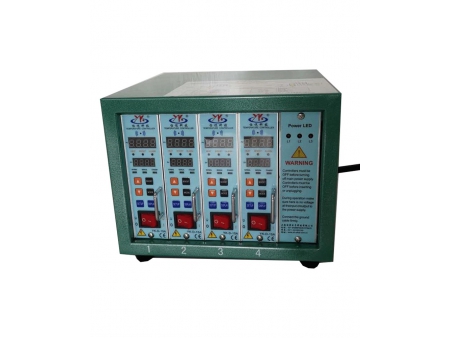

YK-D-15A-4 L300*W320*H230mm

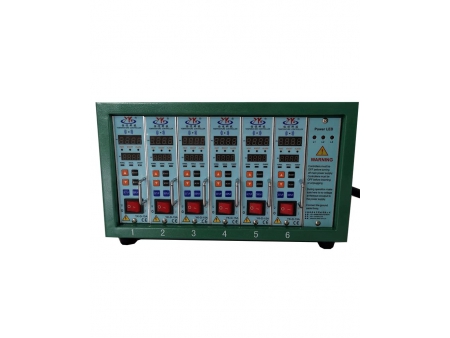

YK-D-15A-(5-6) L400*W320*H230mm

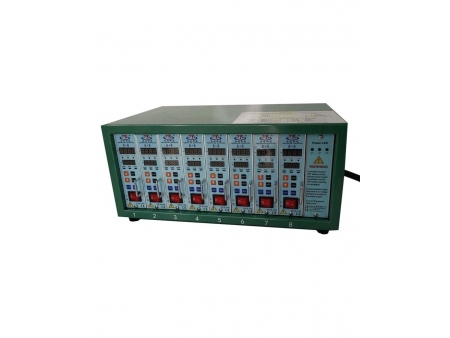

YK-D-15A-8 L500*W320*H230mm

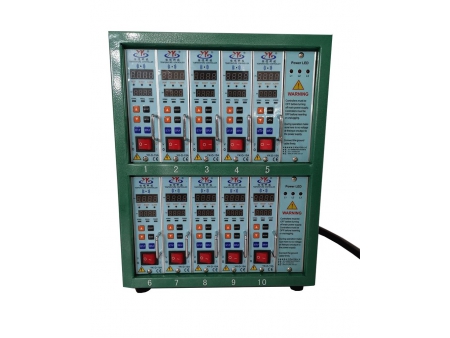

YK-D-15A-(9-10) L350*W320*H430mm

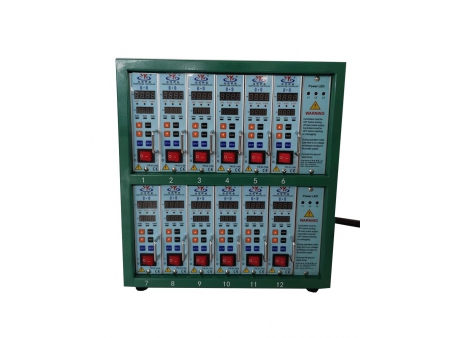

YK-D-15A-(11-12) L400*W320*H430mm

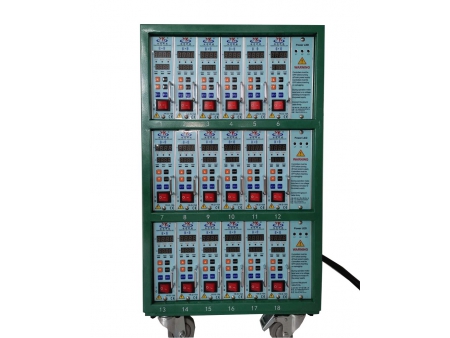

YK-D-15A-(13-18) L400*W320*H730mm

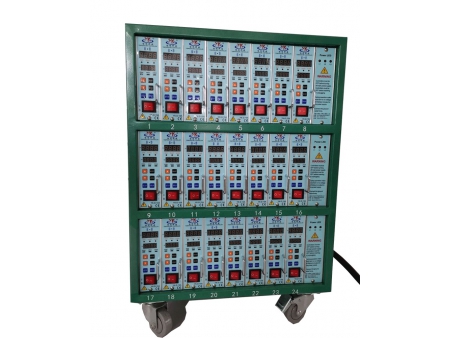

YK-D-15A-(19-24) L500*W320*H730mm

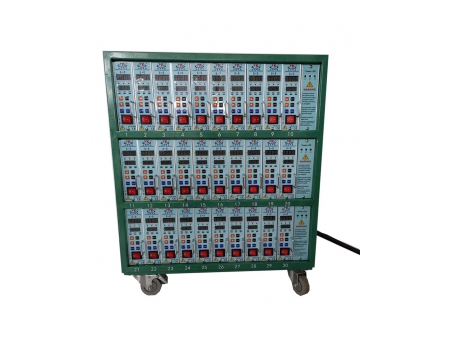

YK-D-15A-(25-30) L600*W320*H730mm

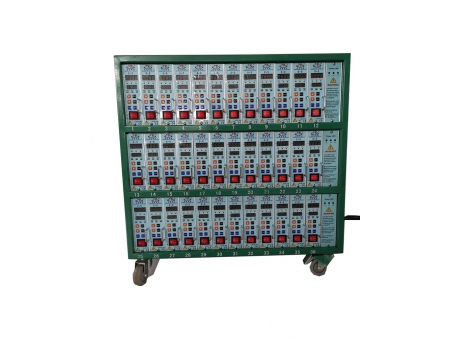

YK-D-15A-(31-36) L720*W320*H730mm

All models shown above are standard mold temperature controllers. Customized options are available upon request.
