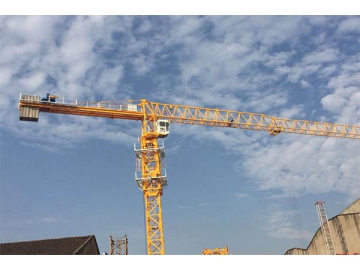

- JST100 in use
JST100 in use
Product Description:
The JST100 flat top tower crane features a powerful lifting moment of 100TM, and hefty lifting capacity of 8 tons. The lifting capacity on the maximum arm length, 60m, is an ample1 ton. This product features six different arm lengths: 60m, 55m, 50m, 45m, 40m and 35m, providing a wide operating space and useful area.
Parameters: | Starting lifting height (m) | Rate | Fixed style | Attached style |
| α=2 | 48 | 180 |
| α=4 | 48 | 90 |
| Maximum lifting weight (t) | 8 |
| Extent (m) | Maximum | 40/45/50/55/60 |
| Minimum | 2.5 |
| Working temperature (℃) | -20℃ - 40℃ |
| Power / KW | 41.3 (lifting mechanism power not included) |
Dimensional figure
(1) Lifting mechanism:
| Rate | α=2 | α=4 |
| Speed (m/min) | 5 - 80 | 2.5 - 40 |
| Lifting weight (t) | 4 - 2 | 8 - 4 |
| Motor model | YZRDWFC250M1-4/8 |
| Working level | M5 |
| Motor power (KW) | 30 |
(2) Slewing mechanism: | Slewing speed (r/min) | 0 - 0.6 |
| Motor model | YLEW112M-55-4F1(F2) |
| Working level | M4 |
| Rated torque (tm) | 55×2 |
| Motor speed (r/min) | 1380 |
(3) Luffing mechanism: | Traction speed (m/min) | 20/40 |
| Motor model | YDEJ132S-4/8 |
| Working level | M4 |
| Motor power (K) | 3.3/2.2 |
| Motor speed (r/min) | 1500/750 |
(4) Lifting mechanism: | Jacking speed (m/min) | 0.6 |
| Motor model | Y132M-4 |
| Motor power (KW) | 7.5 |
| Motor speed (r/min) | 1440 |
| Working pressure(MPa) | 25 |
Jushen is a truthful construction crane manufacturer since 1974, an experienced 8-ton JST100 flat top tower crane supplier, our company design and manufacture building construction machinery and engineering equipment as well as providing vertical lifting solutions for customers. As we use quality steel materials, with a wide range of metal machining and testing equipment, we can provide quality building construction crane and custom flat top tower cranes in specific needs.
