Key Features
  • Ambient Temperature: -20℃ to 45℃
  • Voltage: DC24V
  • LED pitch--0.17-0.66 inch, field cuttable: every 0.98-3.94 inch
  • Length/Reel(M/ft): 5m/16.4ft
  • CRI 90 allows objects to reflect and display colors similarly to natural light
  • Standard 2835 SMD LED strip light, rating IP20 suitable for indoor use
  • 2200-3000 color temperature, providing warm light
  • High color rendering index of CRI 90 allows for revealing colors of illuminated objects, nearly true-to-nature
  • Luminous efficacy up to 100lm/W
  • High color consistency with color tolerance less than 5SCDM
*Please contact our sales for the latest details and certifications

Specification

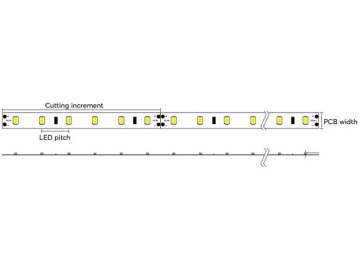

Model Led Qty Power Lumens per feet Cutting increment LED pitch PCB width
FH05W-P0-G1 28LZ9x 24V60S W08L05 60LEDs/M 4.8W/M
1.46W/ft
330-440lm/M
100-134lm/ft
100mm
3.94inch
16.7mm
0.66inch
8mm
0.31inch
FH08W-P0-G1 28LZ9x 24V96S W08L05 96LEDs/M 7.6W/M
2.32W/ft
560-720lm/M
171-219lm/ft
62.5mm
2.46inch
10.4mm
0.41inch
8mm
0.31inch
FH10W-P0-G1 28LZ9x 24V120S W08L05 120LEDs/M 9.6W/M
2.93W/ft
640-900lm/M
195-274lm/ft
50mm
1.97inch
8.3mm
0.33inch
8mm
0.31inch
FH14W-P0-G1 28LZ9x 24V180S W10L05 180LEDs/M 14.4W/M
4.39W/ft
1020-1420lm/M
311-433lm/ft
33.3mm
1.31inch
5.6mm
0.22inch
10mm
0.39inch
FH19W-P0-G1 28LZ9x 24V240S W10L05 240LEDs/M 19.2W/M
5.85W/ft
1300-1770lm/M
396-539lm/ft
25mm
0.98inch
4.2mm
0.17inch
10mm
0.39inch
Note:'x' (CCT) ="24"(2400K) / "27"(2700K) / "30"(3000K) / "40"(4000K) / "50"(5000K) / "60"(6000K),Please contact us for more information.

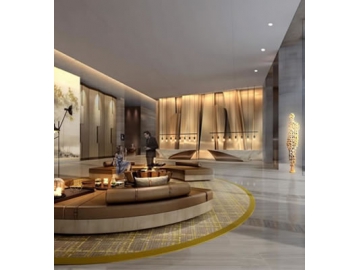

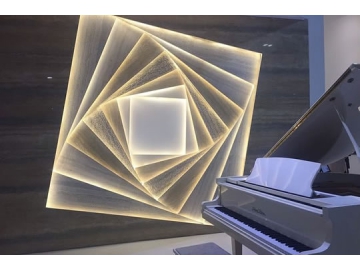

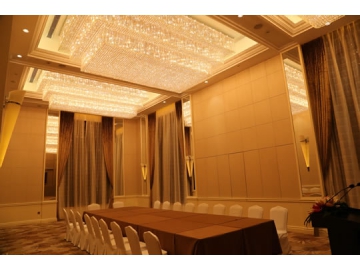

  • Applications
Accessories

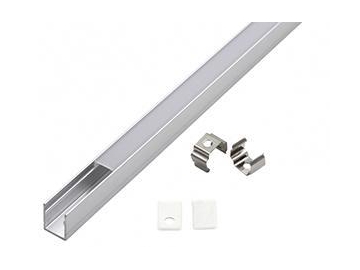

  • LED Aluminum Channel

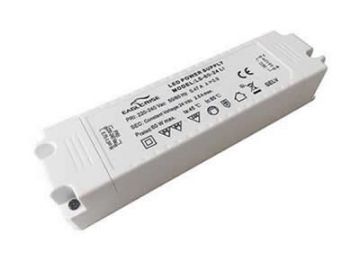

  • Non-waterproof LED Power Supply, Compact Series

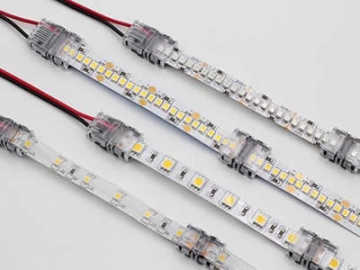

  • SE Series LED Strip Connectors
Projects

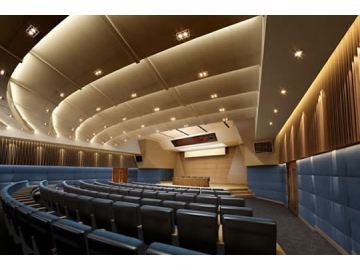

  • Hungarian Cinema
  • Hongkong DFS Duty Free Shop
  • Chengdu Armani Artistic Apartment
