PET Expandable Braided Sleeving
Material: environment-friendly and nontoxic PET(polyester fiber of 1.0 viscosity)
Working temperature: -40℃~150℃
Melting temperature: 240℃
Flammability rating: UL VW - 1
Expendable range: one to three times
Product certification: UL, SGS

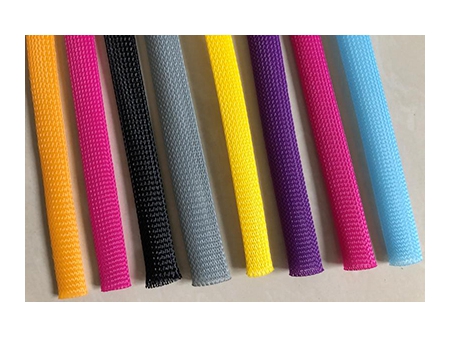

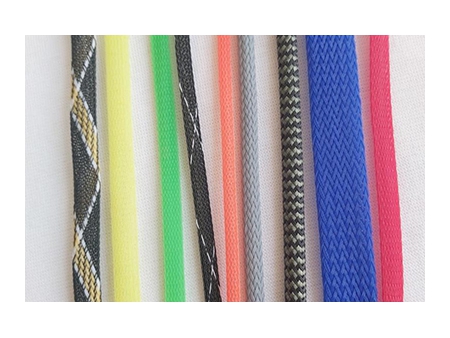

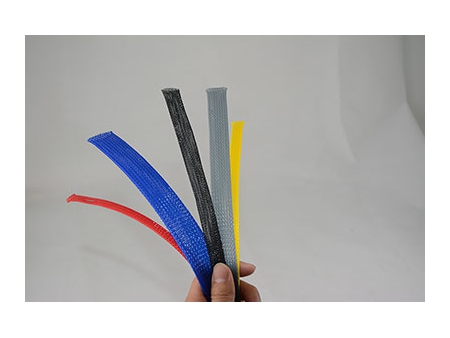

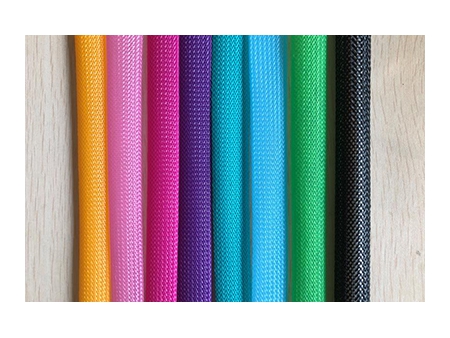

Color: white, yellow, black, blue, gray, etc.
Optional filament diameter: 0.20mm, 0.22mm, 0.25mm, 0.38mm
PET braided sleeving is a braid of fiaments or multifilaments made from industrial and environment-friendly PET of 1.0 viscosity. It features an outstanding wear resistance, smooth surface, air permeability, fire resistance and expandability, and the appearance is beautiful. We can produce braided sleeving in different widths, colors and pictures with filament or multifilament according to customer requirements.
Application

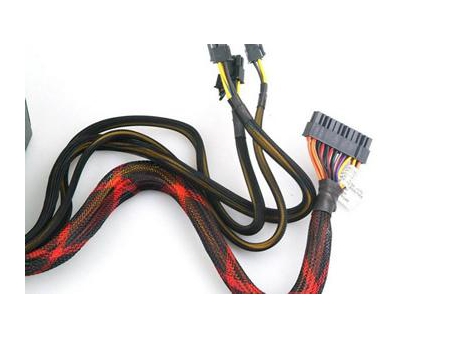

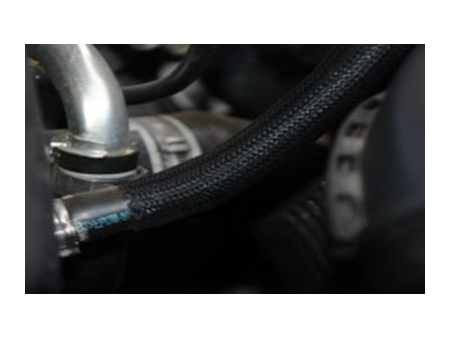

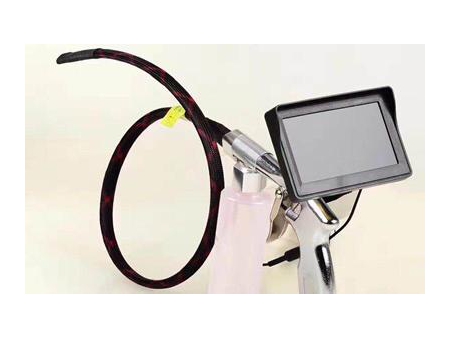

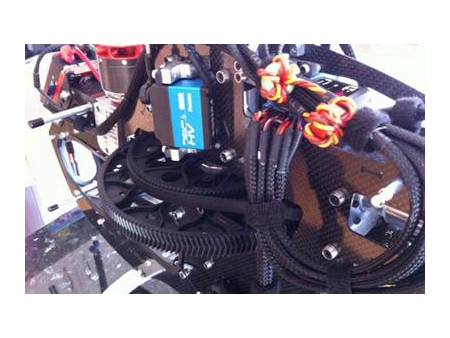

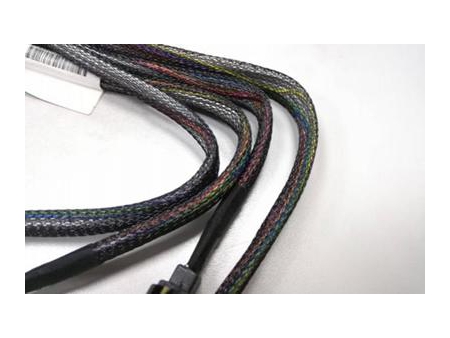

This PET expandable braided sleeving is mainly used in automobile wiring, aircraft wiring, fiber optics, cables, wires, electrical appliances, audio, computers, cables, automotive wire harness and other wiring industries.
| Model | Standard size | Expandable range | Filaments | Strands | Package | ||||
| mm | inch | mm | inch | M/R | FT/R | ||||
| MX-PET003 | 3.2 | 1/8 | 2.4-6.4 | 3/32-1/4 | 1 | 32 | 1000 | 3280 | |
| MX-PET006 | 6.4 | 1/4 | 3.2-11.1 | 1/8-7/16 | 3 | 24 | 600 | 1968 | |
| MX-PET008 | 7.9 | 5/16 | 3.8-12.7 | 2.5/16-1/2 | 3 | 32 | 400 | 1312 | |
| MX-PET010 | 9.5 | 3/8 | 4.7-15.9 | 3/16-5/8 | 3 | 36 | 300 | 984 | |
| MX-PET012 | 12.7 | 1/2 | 6.4-19.1 | 1/4-3/4 | 3 | 48 | 300 | 984 | |
| MX-PET016 | 16 | 5/8 | 9.5-25.4 | 3/8/1 | 3 | 56 | 300 | 984 | |
| MX-PET019 | 19 | 3/4 | 12.7-31.8 | 1/2-1 1/4 | 3 | 64 or 72 | 300 | 984 | |
| MX-PET025 | 25.4 | 1 | 15.9-41.3 | 5/8-1 5/8 | 4 | 64 | 200 | 656 | |
| MX-PET032 | 32 | 1 1/4 | 19.1-44.5 | 3/4-1 3/4 | 3 | 96 | 200 | 656 | |
| MX-PET038 | 38.1 | 1 1/2 | 25.4-63.5 | 1-2 1/2 | 4 | 96 | 100 | 328 | |
| MX-PET045 | 45 | 1 3/4 | 31.8-69.9 | 1 1/4-2 3/4 | 4 | 120 | 100 | 328 | |
| MX-PET051 | 51 | 2 | 38.1-88.9 | 1 1/2-3 1/2 | 5 | 120 | 100 | 328 | |
| MX-PET064 | 64 | 2 1/2 | 44.5-114.3 | 1 3/4-4 1/2 | 6 | 120 | 100 | 328 | |
| MX-PET076 | 76 | 3 | 63.5-120 | 2 1/2-4 3/4 | 5 | 144 | 100 | 328 | |
Note: Please call or email us for other specifications.
