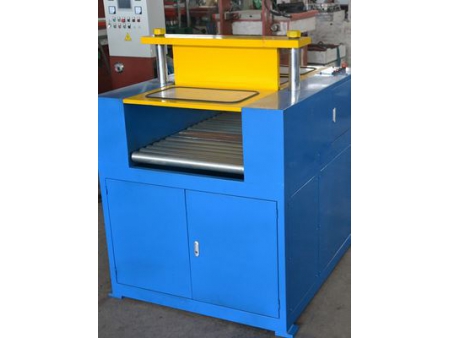

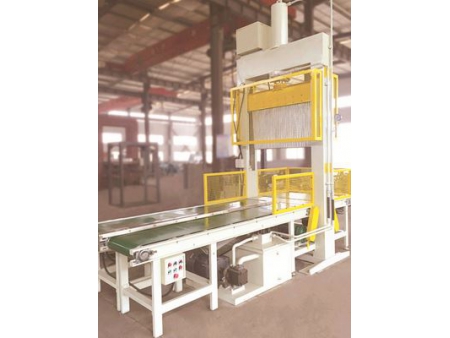

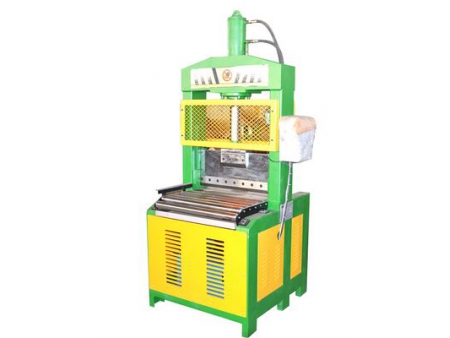

Rubber Bale Cutter

: http://rubber-process.com/1-1-rubber-bale-cutter/index.html

Applications
The Shun Cheong rubber bale cutter is designed for use in the tire industry, rubber conveyor belt industry and other rubber products processing applications. The equipment is intended to cut natural rubber, synthetic rubber, reclaimed rubber, and other combinations of rubber materials. The machine is optimized when installed along with a banbury rubber mixer to cut small pieces.

Product parameters

Model	XQL-50
Cutting width (mm)	560
Rated cutting force (kN)	50
Cutter's displacement (mm)	600
Cutting duration (s)	7-11
Motor power (kW)	3
Length×Width×Height (mm)	2032×1440×2380
Weight (kg)	1200

Model	XQL-80
Cutting width (mm)	660
Rated cutting force (KN)	80
Rubber cutting stroke(mm)	680
Rubber cutting stroke time (S)	14-16
Motor Power (KW)	5.5
Dimensions L×W×H (mm)	2122×1440×2500
Machine Weight (kg)	1400

Model	XQL-125
Cutting width (mm)	760
Rated cutting force (KN)	125
Rubber cutting stroke(mm)	780
Rubber cutting stroke time (S)	14-16
Motor Power (KW)	5.5
Dimensions L×W×H (mm)	1950×1400×2400
Machine Weight (kg)	1600

Model	XQL-300
Cutting Width (mm)	1000
Rated cutting force (KN)	300
Rubber cutting stroke(mm)	1100
Rubber cutting stroke time (S)	14-16
Motor Power (KW)	7.5
Dimensions L×W×H (mm)	2500×600×3500
Machine Weight (kg)	2830

Model	XQL-1000
Cutting Width (mm)	1250
Rated cutting force (KN)	1000
Rubber cutting stroke(mm)	1100
Rubber cutting stroke time (S)	14-16
Motor Power (KW)	11
Dimensions L×W×H (mm)	3000×1850×3800
Machine Weight (kg)	3300

Description of products
1. The XQL-80 rubber bale cutter is extremely popular.
2. The rubber bale cutter is equipped with a hood to protect the operator and their immediate environment.
3. Equipped with idler sets to reduce labor intensity.
