LED Multi-functional Rear Combination Lamp Manufacturer

LED Multi-functional Rear Combination Lamp

: http://vehicle-lamps.com

Description

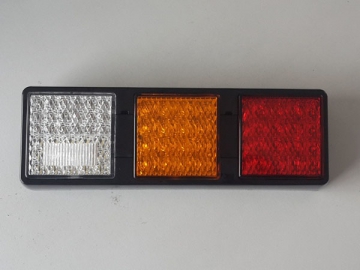

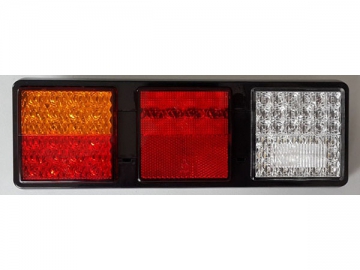

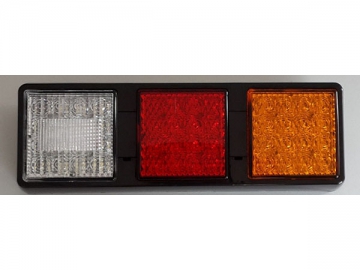

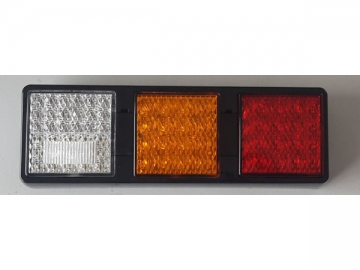

The LED multi-functional rear combination lamp consists of two A80B single LED lamps and surface mounting housing. To use the rear combination lamp, first install the mounting housing on the body of the vehicle. Second, push the multi-functional rear combination lamp into the surface mounting housing. Uninstalling the LED lamp is easy, and requires only the use of a screwdriver. The table below includes the different models of the LED light for reference: A80B-DI/S/T/Re,A80B-S/T/DI/RE ,A80B-S/T/DI/F, A80B-S/T/DI/F/Re/RR,A80B-S/T/DI/F/Re.

Product selection:

P/N	Name	Picture	Remark
A80 B-DI/S/T//RE	Direction Indicator Stop/ Tail Reverse Lamp		For both sides: right and left of vehicle no Rear Fog lamp
A80 B -S/T/DI/RE	Stop/ Tail Direction Indicator Reverse lamp		For right side of vehicle only
A80 B -S/T/DI/F	Stop/ Tail Direction Indicator Rear Fog Lamp		For left side of vehicle only
A80 B-S/T/DI/F/RE/RR	Stop/ Tail/Direction Indicator Rear Fog /Reverse Retro- reflector		For both side right and left of vehicle
A80 B-S/T/DI/F/RE	Stop/ Tail Direction Indicator Rear Fog /Reverse lamp		For both side right and left of vehicle

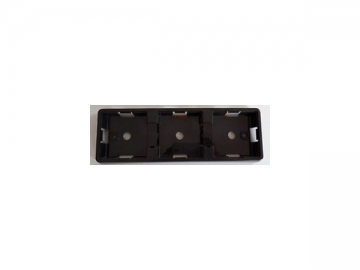

A80-S-T-DI	Surface Mounting Housing		PC ABS Black

Specification:
Operating Voltage:DC12V,DC24V,DC9~33V
Operating temperature:-40~65℃
Light source: high efficiency LED
IP67
Comply with ECE/ADR/SAE/GB requirements
E-Mark Approval

Applications:
The LED multi-functional rear lamp is widely used in busses, trailers, trucks, recreational vehicles and other specialty vehicles.
