EMA13 2 Flute Micro Square End Mill, Long Neck End Mill

EMA13 2 Flute Micro Square End Mill, Long Neck End Mill
EMA13 2 Flute Micro Square End Mill, Long Neck End Mill
EMA13 2 Flute Micro Square End Mill, Long Neck End Mill
: http://metalworking-tool.com/1-11-ema13-2-flute-micro-square-end-mills-long-neck.html
  • Offers excellent performance when cutting prehardened steels up to HRc56
  • Used for machining molds & dies
  • Special long neck design for machining deep cavity, deep slotting and deep pocketing
  • Super micro end mill available with diameters ranging from 0.02~2.9mm
  • 2 flute, miniature cutting tools are suitable for high precision milling in medical, optical, electronics and aerospace industries

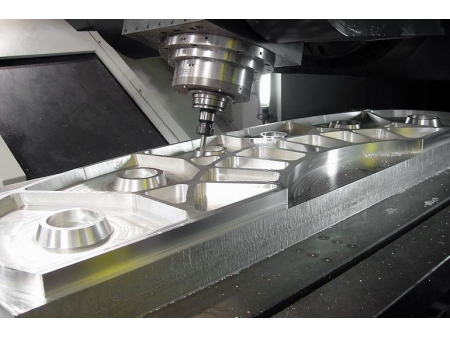

Application
Product Specifications
Coating AITiN /TiALN /TiAISiN
AITiSiN 		HRC HRC46/56
Helix Angle 35°/36°/37° Shank Cylindrical H6
Material IMC™ UMG Carbide Rod Tolerance on Cutting Diameter 0-0.030
Carbide 2 Flute Micro Square End Mills with Long Neck for RIB Processing (UNT-EMA13)
UNT EDP # Click to Order Mill Dia.
D1 		Effective Length
L3 		Shank Dia.
D2 		Flute Length
L1 		O.A.L.
L2 		Flutes
EMA130402 0.4 2 4 0.6 50 2
EMA130404 0.4 4 4 0.6 50 2
EMA130406 0.4 6 4 0.6 50 2
EMA130502 0.5 2 4 0.8 50 2
EMA130504 0.5 4 4 0.8 50 2
EMA130506 0.5 6 4 0.8 50 2
EMA130508 0.5 8 4 0.8 50 2
EMA130602 0.6 2 4 1 50 2
EMA130604 0.6 4 4 1 50 2
EMA130606 0.6 6 4 1 50 2
EMA130608 0.6 8 4 1 50 2
EMA130610 0.6 10 4 1 50 2
EMA130804 0.8 4 4 1.2 50 2
EMA130806 0.8 6 4 1.2 50 2
EMA130808 0.8 8 4 1.2 50 2
EMA130810 0.8 10 4 1.2 50 2
EMA130812 0.8 12 4 1.2 50 2
EMA131006 1.0 6 4 1.5 50 2
EMA131008 1.0 8 4 1.5 50 2
EMA131010 1.0 10 4 1.5 50 2
EMA131012 1.0 12 4 1.5 50 2
EMA131014 1.0 14 4 1.5 50 2
EMA131016 1.0 16 4 1.5 50 2
EMA131018 1.0 18 4 1.5 50 2
EMA131020 1.0 20 4 1.5 50 2
EMA131206 1.2 6 4 1.8 50 2
EMA131208 1.2 8 4 1.8 50 2
EMA131210 1.2 10 4 1.8 50 2
EMA131212 1.2 12 4 1.8 50 2
UNT EDP # Click to Order Mill Dia.
 Effective Length
 Shank Dia.
 Flute Length
 O.A.L.
 Flutes
D1 L3 D2 L1 L2
EMA131214 1.2 14 4 1.8 50 2
EMA131216 1.2 16 4 1.8 50 2
EMA131218 1.2 18 4 1.8 50 2
EMA131220 1.2 20 4 1.8 50 2
EMA131506 1.5 6 4 2.5 50 2
EMA131508 1.5 8 4 2.5 50 2
EMA131510 1.5 10 4 2.5 50 2
EMA131512 1.5 12 4 2.5 50 2
EMA131514 1.5 14 4 2.5 50 2
EMA131516 1.5 16 4 2.5 50 2
EMA131518 1.5 18 4 2.5 50 2
EMA131520 1.5 20 4 2.5 50 2
EMA132006 2.0 6 4 3 50 2
EMA132008 2.0 8 4 3 50 2
EMA132010 2.0 10 4 3 50 2
EMA132012 2.0 12 4 3 50 2
EMA132014 2.0 14 4 3 50 2
EMA132016 2.0 16 4 3 50 2
EMA132018 2.0 18 4 3 50 2
EMA132020 2.0 20 4 3 50 2
EMA133008 3.0 8 4 4.5 50 2
EMA133010 3.0 10 4 4.5 50 2
EMA133012 3.0 12 4 4.5 50 2
EMA133014 3.0 14 4 4.5 50 2
EMA133016 3.0 16 4 4.5 50 2
EMA133018 3.0 18 4 4.5 50 2
EMA133020 3.0 20 4 4.5 50 2

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.

Related products
EMA14 2 Flute Micro Ball End Mill, Long Neck End Mill
EMA14 2 Flute Micro Ball End Mill, Long Neck End Mill
EMB11 2 Flute Micro Square End Mill
EMB11 2 Flute Micro Square End Mill
EMC11 X5070 2 Flute Micro Square End Mill
EMC11 X5070 2 Flute Micro Square End Mill

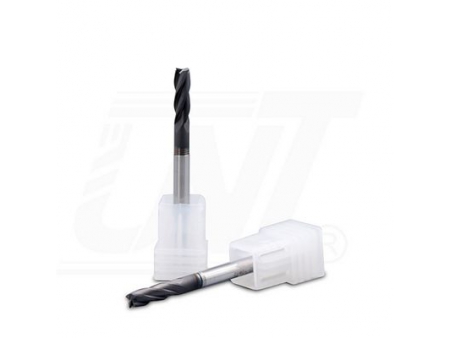

EMFC.01 Diamond Coated End Mill, 2 Flute Square End Mill with Neck
