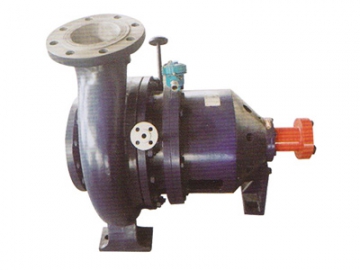

MCZ-G Series Magnetic Drive Pumps

MCZ-G Series Magnetic Drive Pumps

These pumps are horizontal, single-stage and single suction units that are widely used in chemical engineering applications. They adopt Samarium cobalt magnets to ensure they have a large enough magnetic torque under high temperature so that they can handle heating materials up to 350℃. Their integral structure and static-sealing prevent liquid from leaking and polluting the surrounding environment. The power rate and impeller can be adjusted according to the material transmitted. The magnetic drive pumps are suitable for inflammable, potentially toxic, volatile, highly corrosive, easy condensed liquids. Under certain circumstance, the pumps can be used as shielded electric pumps.

Technical Parameters
  • Shaft seal type: magnetic drive
  • Casing & impeller materials: 304, 306L stainless steel
  • Distance sleeve materials: 316L stainless steel, C276, Ti718
  • Max rated pressure at 20℃: PN25
  • Max fluid temperature: 120℃/350℃
  • Max flow rate at 2900 rpm: 100m³/h
  • Max head at 2900 rpm: 50m
  • Allowable medium density range: ≤1.84g/cm3
  • Power range: 0.37~55kW
  • Others: available on request
Common Applications
  • Refinery Industry
  • Chemical Processing
  • Fine Chemical Processing
  • Metallurgical Industry
  • Food Processing
  • Fiber Processing
  • Pharmaceutical
  • Electroplate Industry
  • Paper Industry
  • Electric Power Industry

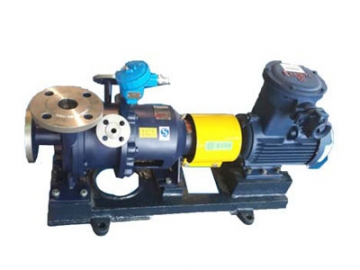

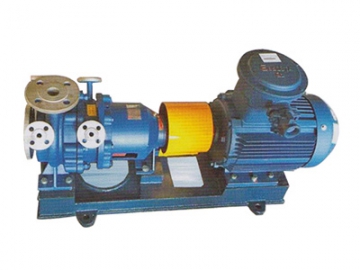

Related products
