Materials
  • High quality alloy steel
Hardness

HRC 60-62

Specifications

We provide all sizes of rotary peeling knives; customization service is also offered following your drawings.

Machines

Compatible with various types of domestic and foreign rotary peeling machines.

Application

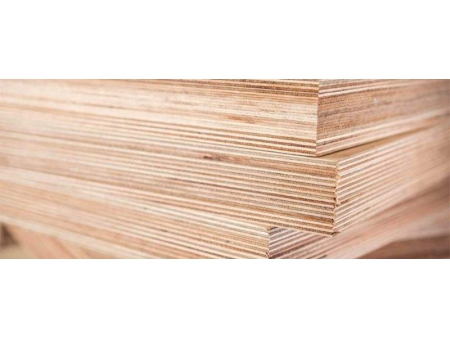

Suitable for the production of plywood. It is used to the rotary peeling of high grade face, back and core veneer.

Specifications
Machine Length/mm Width/mm Thickness/mm Face hole Bottom hole Slot
UROKO 5FT 1524 200 16 30-W5/8” 6-W3/8” 0
UROKO 7FT 2200 200 16 42-W5/8” 8-W3/8” 0
UROKO 9FT 2760 200 16 54-W5/8” 10-W3/8” 0
UROKO 11FT 3360 200 16 66-W5/8” 12-W3/8” 0
RAUTE 5FT 1450 197 16 6-M16 6-M10 7
RAUTE 9FT 2900 197 16 12-M16 12-M10 14
TAIHEI 9FT 2750 200 16 15-M12 17-M10 0
MEINAN5FT-ARISTO 1500 170 16 2-M12 6-M8 0
MEINAN5FT-ALTO 1430 170 16 2-M12 4M10 4M8 0
MEINAN 7FT 2200 170 16 18-M10 7-M6 0
MEINAN 9FT 2760 180 16 30-M10 9-M10 0
CHINA ROTARY MACHINE 1500 180 16
CHINA ROTARY MACHINE 1400 180 16
CHINA ROTARY MACHINE 2750 180 16
CHINA ROTARY MACHINE 2700 160 13
CHINA ROTARY MACHINE 2700 140 13
