Hollow Wafer Stick(one/two colors) Manufacturer

Hollow Wafer Stick(one/two colors)

: http://biscuitequipments.com/1-14-egg-roll-wafer-stickegg-roll-wafer-stick.html

Egg Roll

Egg Roll / Wafer Stick

The regular wafer stick machine, or wafer roll machine shown here is a general solution that we provide for common wafer stick production. This industrial food machinery utilizes liquefied petroleum gas or natural gas as its fuel, and can produce center-filled or hollow wafer sticks.

Hollow Wafer Stick(one/two colors)

Pressed Wafer Stick

Wafer Stick With Cream Filling

Chocolate Enrobing Wafer Stick

Pillow-shaped Wafer Stick 2

Technical Parameters of Regular Wafer Stick Machine

Items	Specifications
Main Machine Dimension	2480 × 1800 × 2300 mm
Main Machine Weight	4300kg
Batter/Cream Feeder Size (L× W× H)	800 × 800 × 800mm
Cooling Conveyor Dimension (L× W× H)	4000 × 350 × 950 mm
Capacity	50kg /h (100pcs/min)
Power supply	3-380V, AC
Gas type	LPG / natural gas
Baking wheel material	Special heat-resistant cast iron alloy
Baking wheel diameter	φ 2000mm
Mode of bottom heating	Direct fire heating

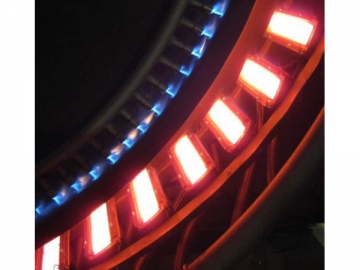

Mode of top heating	Infrared burner from Japan
Safety protection method	Cut the burner and alarm automatically by ignition control module
Burner cutting method	Pneumatic
Forming machine bearing brand	Japan NSK
Forming machine motor brand	Taiwan Yusin Gearmotor
Frequency converter brand	Japan Panasonic
Igniter solenoid valve	Taiwan
Ignition controller	Taiwan Kingpin
Electrical controller component	France Schneider
Main forming machine cover	304 stainless steel
Conveyor cover	304 stainless steel

Technical Parameters of 10kg Batter Mixer

Items	Specifications
Mixing capacity	10 kg /time
Power supply	3-380V, AC
Motor power	2.2kw
Material of mixing bowl	304 stainless steel
Material of mixing tool	304 stainless steel
Electrical controller component	France Schneider
Cover material	304 stainless steel
