EMA18 Chamfer End Mill, Chamfer Milling Cutter
- Designed for back chamfering, chamfering, deburring, and milling a V-groove
- Radiused tip design for improved strength, superior performance, surface finish, and chip evacuation
- Carbide, Chamfer milling cutter,30°/40°/60°/90°/120°

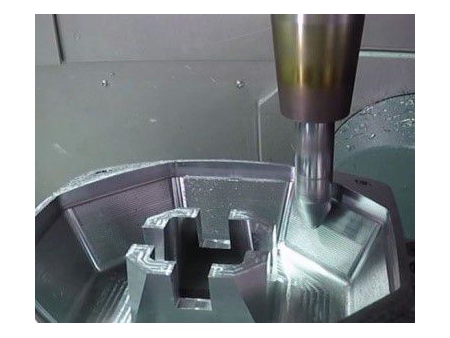

Application
Product Specifications
Coating | AITiN /TiALN /TiAISiN AITiSiN | HRC | HRC40/46/56/65 |
Helix Angle | 30°/45°/60°/90° | Shank | Cylindrical H6 |
Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, Chamfer Milling Cutter, High Gloss Profiling (UNT-EMA18)
Helix Angle | Cutter Dia. | Radius | Flute Length | O.A.L. | ALTiN/TiN Coated | Non-Coated | |
A | 1° | D2 | R | L1 | L2 | UNT EDP# Click to Order | UNT EDP#Click to Order |
-1° | |||||||
30° | 1/8 | .0050 | .218 | 1-1/2 | |||
1/8 | .0100 | .204 | 1-1/2 | ||||
1/8 | .0150 | .190 | 1-1/2 | ||||
3/16 | .0050 | .335 | 2 | ||||
3/16 | .0100 | .321 | 2 | ||||
1/4 | .0150 | .452 | 2-1/2 | ||||
1/4 | .0100 | .437 | 2-1/2 | ||||
40° | 1/8 | .0050 | .162 | 1-1/2 | |||
1/8 | .0100 | .152 | 1-1/2 | ||||
1/8 | .0150 | .142 | 1-1/2 | ||||
60° | 1/8 | .0050 | .103 | 1-1/2 | |||
1/8 | .0075 | .100 | 1-1/2 | ||||
1/8 | .0100 | .098 | 1-1/2 | ||||
1/8 | .0150 | .093 | 1-1/2 | ||||
1/8 | .0200 | .088 | 1-1/2 | ||||
3/16 | .0050 | .157 | 2 | ||||
3/16 | .0100 | .152 | 2 | ||||
3/16 | .0150 | .147 | 2 | ||||
1/4 | .0050 | .211 | 2-1/2 | ||||
1/4 | .0100 | .206 | 2-1/2 | ||||
1/4 | .0150 | .201 | 2-1/2 | ||||
90° | 1/8 | .0050 | .060 | 1-1/2 | |||
1/8 | .0075 | .059 | 1-1/2 | ||||
1/8 | .0100 | .058 | 1-1/2 | ||||
1/8 | .0150 | .056 | 1-1/2 | ||||
1/8 | .0200 | .054 | 1-1/2 | ||||
3/16 | .0050 | .091 | 2 | ||||
3/16 | .0100 | .089 | 2 | ||||
3/16 | .0150 | .087 | 2 | ||||
1/4 | .0050 | .122 | 2-1/2 | ||||
1/4 | .0100 | .120 | 2-1/2 | ||||
1/4 | .0150 | .118 | 2-1/2 | ||||
120° | 1/8 | .0050 | .035 | 1-1/2 | |||
1/8 | .0100 | .034 | 1-1/2 | ||||
• Milling cutters with non-standard sizes or specifications not listed above can be customized according to customer needs. |
