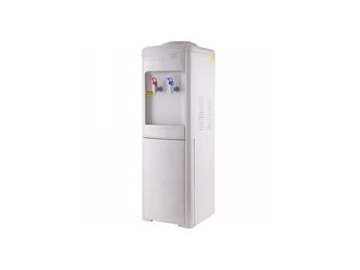

Hot and Cold Water Dispense 16L/16L-B Manufacturer

Hot and Cold Water Dispense 16L/16L-B

: http://cnbeveragemachine.com/1-16L-dispenser-b4.html

Classifications of Hot and Cold Water Dispenser 16L/16L-B
1. Hot and cold water dispenser YLR2-5-X (16L)

2. Drinking water equipment with 16-liter fridge:
YLR2-5-X (16L-B)
YLR2-5-X (16L-SB)

3. Floor standing hot and cold water dispenser with 16-liter sterilizer:
YLR2-5-X (16L-X)
YLR2-5-X (16L-SX)

Technical Parameters of Hot and Cold Water Dispense 16L/16L-B:

Modes	YLR2-5-X(16L)	YLR2-5-X(16L-B) YLR2-5-X(16L-SB)	YLR2-5-X(16L-X) YLR2-5-X(16L-SX)
AC Voltage	220V/50HZ or 110V/60HZ	220V/50HZ or 110V/60HZ	220V/50HZ or 110V/60HZ
Cooling Power (W)	112	130	130
Heating Power (W)	500	500	500
Cooling Capacity (L/H)	≤10℃ 2L/H	≤10℃ 2L/H	≤10℃ 2L/H
Heating Capacity (L/H)	≥90℃ 5L/H	≥90℃ 5L/H	≥90℃ 5L/H
Energy Consumption	1.65kW.h/24h	1.65kW.h/24h	1.65kW.h/24h
Working Temperature	10-38℃	10-38℃	10-38℃
Electric Shock Protection Type	I	I	I
N.W.(KGS)	18.5	18.5	18.5
G.W.(KGS)	20	20	20
Product Dimension (MM)	310×310×960	310×310×960	310×310×960
Regular Packaging Dimension (MM)	370×380×1000	370×380×1000	370×380×1000
Simple Packaging Dimension (MM)	330×340×1000	330×340×1000	330×340×1000
1*20'(PCS) Regular Packaging	180	180	180
1*40'(PCS) Regular Packaging	384	384	384
1*40'(PCS) Simple Packaging	490	490	490

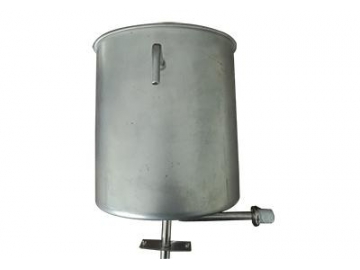

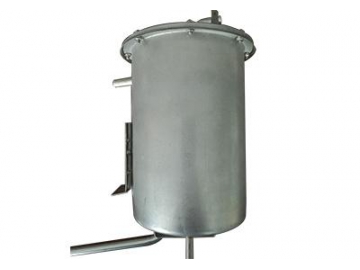

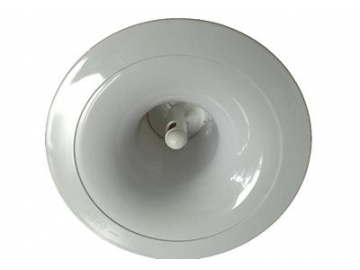

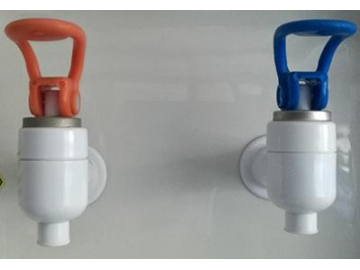

Details
