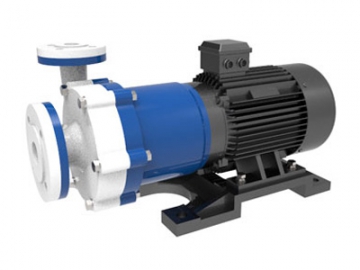

CQF Series Magnetic Drive Pumps
The CQF series magnetic drive pumps are newly designed with a casing that uses a reinforced polypropylene to reduce the weight and flow passage using PTFE/FEP/PFA to prevent liquid from polluting the pump. These pumps are suitable for a various range of liquids, whether with few or no non-ferrous particles, including corrosive liquids like strong acids and alkalis. The self-heating and cooling design also allow the pumps to operate efficiently under a temperature range of -40℃ and 100℃. The internal screw will maintain its shape without generating unwanted Magnetoelectric eddy current even under a pressure of 1.2MPa. The flow passage is static sealed to ensure a safe, leak-free operation. These pumps are an ideal solution for the creation of a leak and pollution free factory, and are suitable for transferring inflammable, toxic and expensive liquids.
- Shaft seal type: magnetic drive
- Casing & impeller materials: PVDF
- Distance sleeve materials: PVDF
- Max rated pressure at 20℃: PN12
- Max fluid temperature: -40℃/ 100℃
- Max flow rate at 2900 rpm: 25m³/h
- Max head at 2900 rpm: 40m
- Allowable medium density range: ≤1.84g/cm3
- Power range: 0.04～2.52kW
- Others: available on request
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
