G100 Swivel Self Locking Hook
Features
● Surface treatment: plastic spraying.
● Color code: blue RAL5015.

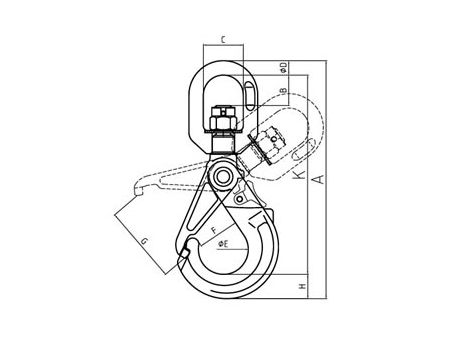

| Item No | Weight Kg | Working Load Limit (t) | Breaking Load (t) | A±2 | B±2 | C±1 | D±0.5 | E±0.5 | F±1 | G±l.5 | H 0.5 | K±2 |
| 8-10 | 1.03 | 2.5 | 10 | 220 | 29 | 36 | 13 | 45 | 37.5 | 32 | 22 | 185 |
| 10-10 | 1.86 | 4 | 16 | 264 | 39 | 42 | 15.5 | 55.5 | 47.5 | 46 | 30 | 219 |
| 13-10 | 3.34 | 6.7 | 26.8 | 334 | 46 | 49 | 19 | 64 | 52 | 56 | 39 | 275.5 |
| 16-10 | 5.9 | 10 | 40 | 400 | 69 | 62 | 23 | 80 | 68 | 91 | 46 | 329 |
