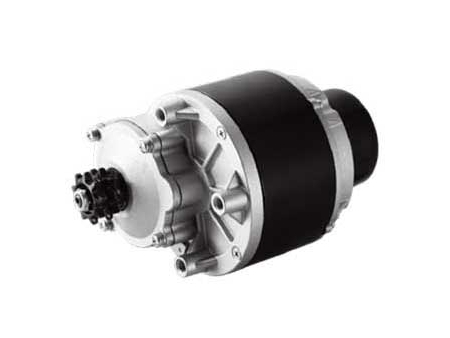

450W Horizontal Travel Drive Motor, PMDC Brushed Motor ZD109AZ5
Your Motion
Application: electric material handling equipment including conveyors, cranes, industrial trucks, forklifts, AGVs, etc.
Technical Specifications
| Rated Power (W) | 450 |
| Rated Voltage(V) | 24 |
| No-load Revolution (RPM) | 3000±6% |
| No-load Current (A) | ≤3.5 |
| Rated Current (A) | ≤25.0 |
| Rated Torque(N•m) | 1.8 |
| Rated Revolution (RPM) | 2400±6% |
| Working Cycle (min.) | S2-60 |
| Insulation Class | F |
| Gear Ratio | 7.18:1 |
| Protection Level | IP44 |
| Insulation Resistance | >20 MΩ |
| Length (mm) | 114 |
Note: customization of PMDC brushed motor is available upon your product requests and working conditions.
