G100 Eye Self Locking Hook

G100 Eye Self Locking Hook
G100 Eye Self Locking Hook
Request a Quote

Features
● Surface treatment: plastic spraying.
● Color code: blue RAL5015.

Technical Parameters

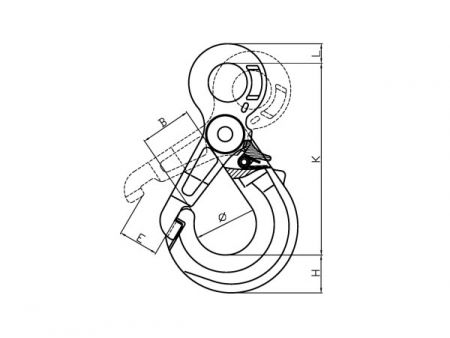

Item No Weight Kg Working Load Limit (t) Breaking Load (t) B±0,5 E±1 φ± 1 φ'±1 H±1 K±2 L±1
8-10 0.81 2.5 10 37.5 35 45 27 21 138 12
10-10 1.41 4 16 47.5 46 56 34.5 30.5 169 15
13-10 2.61 6.7 26.8 52 56 64 40 39 205 20
16-10 4.45 10 40 69 86 80 50 46.3 252 27
