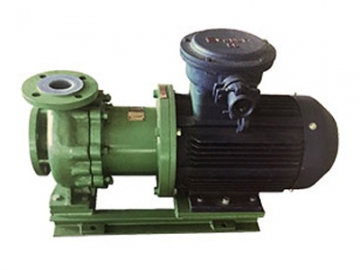

IMC Series Magnetic Drive Pumps

: http://manufacturer-pump.com/1-18-imc-series-magnetic-drive-pumps.html

The IMC series magnetic drive pumps are leak, corrosion, and heat resistant. Flow passage use a variety of corrosion resistant materials, including 304, 306, 316, 316L and titanium. Pump couplings connect the pump shaft and motor shaft together to ensure the motor efficiently transmits power to the pump. Maintenance is easy as there is no need to disconnect pipes from the motor during repair. These pumps are ideal for transferring inflammable, toxic, corrosive and expensive liquids in the ethylene, mineral plants, oil refining, petrochemical, petroleum, pharmaceutical, food, paper, and sewage treatment industries.

Technical Parameters

Shaft seal type: magnetic drive
Casing & impeller materials: F46, PFA
Max rated pressure at 20℃: PN16
Max fluid temperature: -40℃/ 150℃
Max flow rate at 2900 rpm: 120m³/h
Max head at 2900 rpm: 130m
Allowable medium density range: ≤1.84g/cm³
Power range: 0.81～50kW
Others: available on request

Common Applications

Refinery Industry
Chemical Processing
Fine Chemical Processing
Metallurgical Industry
Fiber Processing
Pharmaceutical
Electroplate Industry
Paper Industry
Electric Power Industry
