JAC-K367RM Aluminum Oxide Mounted Flap Wheels Manufacturer

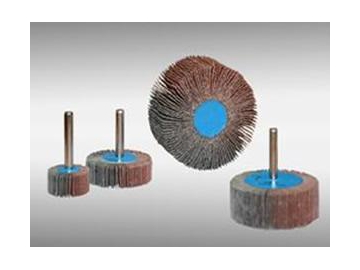

JAC-K367RM Aluminum Oxide Mounted Flap Wheels

: http://indus-abrasives.com/1-2-1-2-aluminum-oxide-mounted-flap-wheels.html

Availability

Product Code	JAC-K366GM	JAC-K367RM	JAC-K368KM
Abrasive Grains	Standard Alumina Oxide	Refined Alumina Oxide	Refined Alumina Oxide
Backing Cloth Type	X-Flex cotton	X-Flex cotton	X-Flex cotton
Flap Mounted Version	Single	Single	Single
Straight Steel Shank Size	Straight Shank-1/8"	Straight Shank-1/8"	Straight Shank-1/8"

BRITSH SIZE	METRIC SIZE	OPT	MAX	STD	GRIT	PART #	PART #	PART #
( D x W x S )	( D x W x S )	RPM	RPM	PACK	GRIT	PART #	PART #	PART #
3/4" x 1/2" x 1/8"	22 x 13 x 3.0 mm	20,000	30,000	10	40	36543	36557	36545
					60	36556	36560	36558
					80	36569	36573	36561
					100	36572	36586	36574
					120	36585	36599	36587
					150	36598	36602	36590
					180	36601	36615	36603
					240	36614	36628	36616
					320	36627	36631	36629
3/4" x 5/8" x 1/8"	22 x 15 x 3.0 mm	20,000	30,000	10	40	36630	36644	36632
					60	36643	36657	36645
					80	36656	36660	36658
					100	36669	36673	36661
					120	36672	36686	36674
					150	36685	36699	36687
					180	36698	36702	36690
					240	36701	36715	36703
					320	36714	36728	36716
3/4" x 3/4" x 1/8"	22 x 20 x 3.0 mm	20,000	30,000	10	40	36727	36731	36729
					60	36730	36744	36732
					80	36743	36757	36745
					100	36756	36760	36758
					120	36769	36773	36761
					150	36772	36786	36774
					180	36785	36799	36787
					240	36798	36802	36790
					320	36801	36815	36803
3/4" x 1" x 1/8"	22 x 25 x 3.0 mm	20,000	30,000	10	40	36814	36828	36816
					60	36827	36931	36829
					80	36930	36944	36932
					100	36943	36957	36945
					120	36956	36960	36958
					150	36969	36973	36961
					180	36972	36986	36974
					240	36985	36999	36987
					320	36998	37002	36990
3/4" x 1-3/16" x1/8"	22 x 30 x 3.0 mm	20,000	30,000	10	40	37001	37015	37003
					60	37014	37028	37016
					80	37027	37031	37029
					100	37030	37044	37032
					120	37043	37057	37045
					150	37056	37060	37058
					180	37069	37073	37061
					240	37072	37086	37074
					320	37085	37099	37087
3/4" x 1-1/2" x1/8"	22 x 40 x 3.0 mm	20,000	30,000	10	40	37098	37102	37090
					60	37101	37115	37103
					80	37114	37128	37116
					100	37127	37131	37129
					120	37130	37144	37132
					150	37143	37157	37145
					180	37156	37160	37158
					240	37169	37173	37161
					320	37172	37186	37174
3/4" x 2" x 1/8"	22 x 50 x 3.0 mm	20,000	30,000	10	40	37185	37199	37187
					60	37198	37202	37190
					80	37201	37215	37203
					100	37214	37228	37216
					120	37227	37231	37229
					150	37230	37244	37232
					180	37243	37257	37245
					240	37256	37360	37258
					320	37269	37373	37361
