3-Way Brass Diverting Ball Valve, L Flow
- Working pressure: 600PSI WOG
- Temperature range: -40 °F to 365 °F (-40 °C to 185 °C)
- Chrome plated brass ball, PTFE ball seats
- Steel handle with vinyl grip

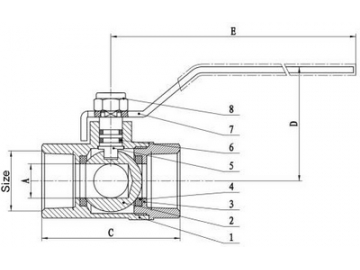

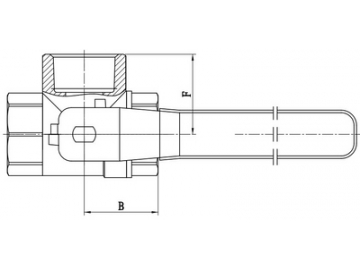

Inch/Metric(mm)
| Item # | Size | A | B | C | D | E | F |
| IPYZ8 | 1/4" | 0.39 (9.9) | 0.92 (23.4) | 1.83 (46.5) | 1.77 (45.0) | 3.88 (98.6) | 0.93 (23.6) |
| IPYZ9 | 3/8" | 0.39 (9.9) | 0.92 (23.4) | 1.83 (46.5) | 1.77 (45.0) | 3.88 (98.6) | 0.93 (23.6) |
| IPYZA1 | 1/2" | 0.51 (13.0) | 1.10 (27.9) | 2.20 (55.9) | 1.83 (46.5) | 3.88 (98.6) | 1.12 (28.4) |
| IPYZA2 | 3/4" | 0.67 (17.0) | 1.18 (30.0) | 2.37 (60.2) | 1.99 (50.5) | 4.84 (122.9) | 1.24 (31.5) |
| IPYZA3 | 1" | 0.87 (22.1) | 1.46 (37.1) | 2.92 (74.2) | 2.13 (54.1) | 4.84 (122.9) | 1.54 (39.1) |
| IPYZA4 | 1-1/4" | 0.98 (24.9) | 1.61 (40.9) | 3.23 (82.0) | 2.46 (62.5) | 5.51 (140.0) | 1.85 (47.0) |
| IPYZA5 | 1-1/2" | 1.26 (32.0) | 1.87 (47.5) | 3.81 (96.8) | 2.76 (70.1) | 5.51 (140.0) | 2.07 (52.6) |
| IPYZ1A6 | 2" | 1.50 (38.1) | 1.99 (50.5) | 3.98 (101.1) | 2.97 (75.4) | 5.51 (140.0) | 2.26 (57.4) |
| Part # | Part Name | Material |
| 1 | Body | Brass |
| 2 | Ball | Brass |
| 3 | Caps | Brass |
| 4 | Seat | PTFE |
| 5 | Stem | Brass |
| 6 | Packing | PTFE |
| 7 | Handle | Steel |
| 8 | Nut | Steel |
