6T Truck Cranes, STSQ6A

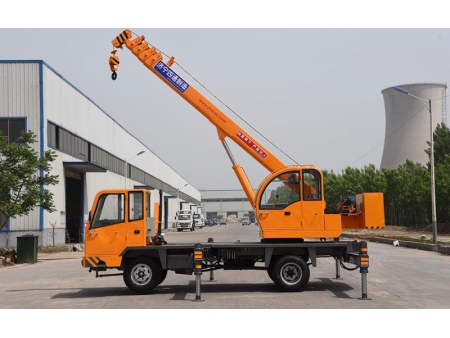

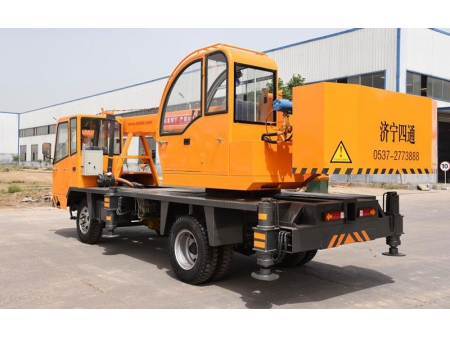

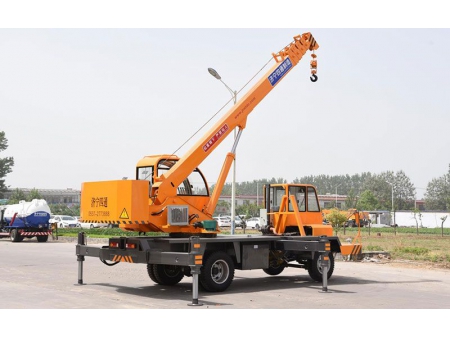

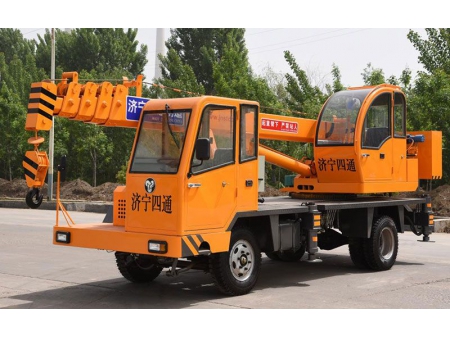

6-ton truck mounted crane features a 5-section telescopic boom with the maximum lifting height up to 22m. It is configured with Changchai 490 engine, 11kW motor and 700-16 truck tyres. This telescopic truck-mounted crane is perfectly suitable for lifting and moving loads in the working area or limited space areas either indoors or outdoors.
Specifications
- Max. loading capacity
- 6t
- Max. lifting height
- 22m
- Longitudinal outrigger span
- 3.17m
- Transversal outrigger span
- 4.3m
- Boom
- 5 sections (5m per section)
- Dimensions
- 7.5m*2.1m*2.6m
- Motor power
- 11kW
- Slewing speed
- 0-2.8r/min
- Engine power
- 37kW
- Tyres
- 700-16
- Wheelbase
- 3.15m
- Crane weight
- 5.63t
