B460 Box Wrapper

B460 Box Wrapper
B460 Box Wrapper
B460 Box Wrapper
B460 Box Wrapper
B460 Box Wrapper
B460 Box Wrapper
Request a Quote

Box Wrapping Equipment

Parameters
Parameters B460
Sheet size(A×B) Min. 100×200mm
Sheet thickness 100-200g/m2
Cardboard thickness T 1-3mm
Box size(W×L×H) Min. 50×100×15mm Max. 320×420×120mm
Edge Folding depth R min. 10mm R max. 70mm
Production speed 10-20 boxes/min
Power 10kw/380V/3phases
Heater power 2.5kw
Air supply 10L/min 0.6Mpa
Machine weight 700kg
Machine dimension L1100×W1100×H2600mm

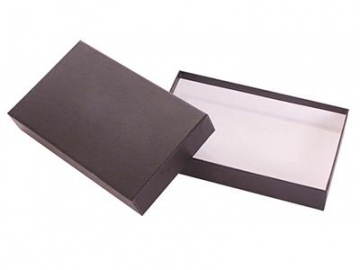

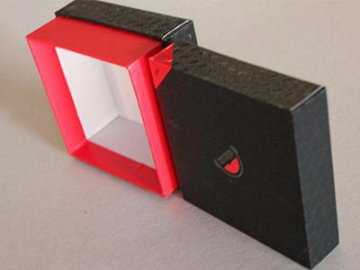

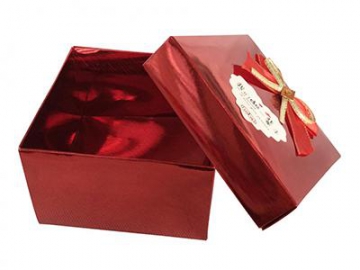

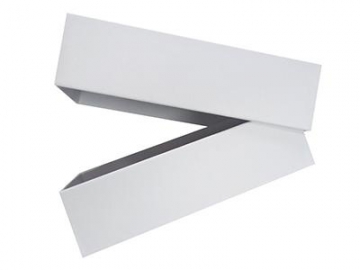

Samples
