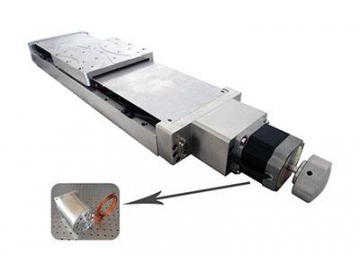

VWN220TA vacuum Compatible Motorized Linear Stages
VWN220TA vacuum compatible motorized linear stage uses stainless steel as main material. Equipped with stepper motor and ball screw drive, the stage is suitable for industrial processing, laboratory working or other heavy workload.
Multiple travel ranges to choose from: 50mm~300m, the highest load capacity is 30kg.
- High load capacity and rigidity with imported ball screws and linear slide rail, suitable for working under high load, such as industrial processing or laboratory.
- Stainless steel as main body material, making the linear stage heavier and more stable, also impervious to temperature and moisture.
- Grating scale forms closed loop, which makes the linear stage more accurate. 5-phase stepper motor also increases the performance.
- High precision ball screws ensures good repeatability and positional accuracy. Small axial clearance; long lifespan; also equipped with dustproof cover.
| Model | WN220TA50S-G | WN220TA100S-G | WN220TA200S-G | WN220TA300S-G | |
| Structure | Travel | 50mm | 100mm | 200mm | 300mm |
| Table Size | 115×115mm | 115×115mm | 115×115mm | 115×115mm | |
| Screw Type | High precision ball screw (lead 5mm) | ||||
| Guide Rail | High precision linear slide rail | ||||
| Stepper Motor (0.72°) | 5-phase Stepper motor | ||||
| Material | Stainless steel | ||||
| Load Capacity | 30 kg | ||||
| Weight | 8kg | 10kg | 12kg | 13kg | |
| Accuracy | Resolution | 10μ(Non-MS driver) 0.5μ(20 MS driver) | |||
| Maximum Speed | 25mm/sec | ||||
| Repeatability | ＜1μ | ||||
| Straightness | 8μ | 10μ | 15μ | ||
| Driving Parallelism | 15μ | 20μ | 25μ | ||
| Accessories | Renishaw grating scale with the resolution of 0.1μ | ||||

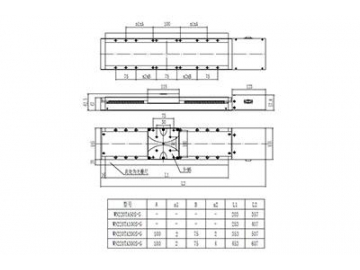

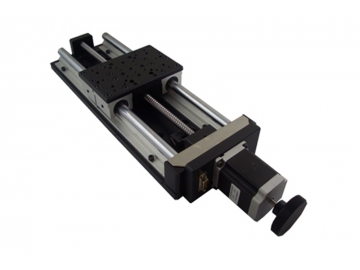

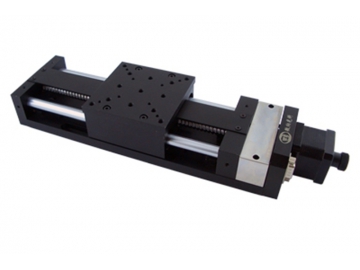

Related products
