3-Wheel Wood Log Grapple Loader
Recommended application
Log grapple of the HY 5800 wood log grapple loader is rotational designed, which can achieve quick stacking and loading of irregularly arranged logs. The loader can rotate at 360 degrees on the spot and the front grapple can be side mounted, with less work place. It also has strong climbing capacity to adapt to various working conditions covering flat, sloping and bumpy roads.
| Operating Weight | 5800KG |
| Grab Capacity | 400-1000KG |
| Engine Brand | Cummins |
| Model of Engine | 4BTA3.9-C100- |
| Rated Power | 74W |
| Walking Speed | 5-7KM/H |
| Max. Height of Grapple | 5040mm |
| Working Efficiency | 1000kg/min |
| Hydraulic System Working Pressure | 22MPA |
| Maximum Hauling Force | 29KN |
| Slope | 0.25 |
| Tyre(standard model) | 18.4-30(front dual) front wheel 400-60-15.5(rear one) rear wheel |
| Wheelbase | 3570mm |
Note: Hongyuan can provide OEM production and customized machines according to customer requirements.
Features
Cummins engine2. The loader can walk and stack at the same time, and the driver can complete multiple operations simultaneously through hand and foot cooperation, thus the work is flexible, and the efficiency is greatly improved that a single machine can replace a lot of human work.

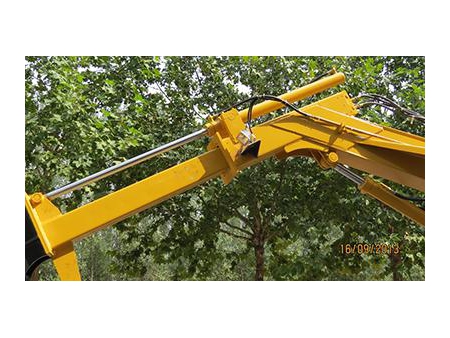

- Telescopic boom

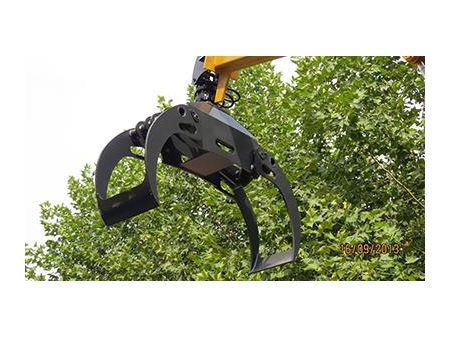

- Grapple that can rotate at 360 degrees
3. High quality parts are used in all the key parts, such as famous Cummins engine, Korean DOOSAN main pump, which are all made by famous hydraulic parts manufacturers. If any replacement of spare parts is required, customers can find solutions from local suppliers.

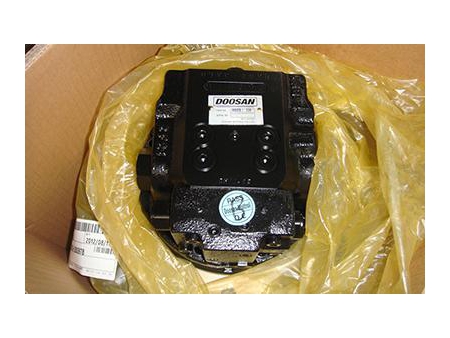

- Korean DOOSAN original motor
- Korean DOOSAN original oil pump
4. Others:
The wider tyre used on the loader ensures greater contact area with the ground, more stable for wheel turn. It can also available in greater driving force and excellent performance in any muddy areas.

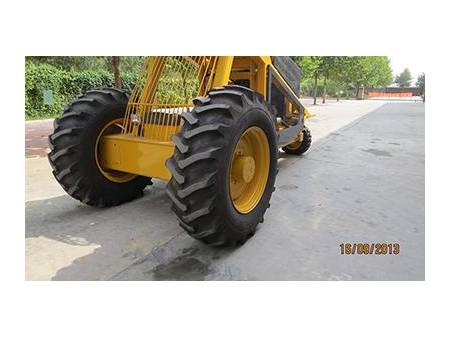

- Front wheel with larger drive power

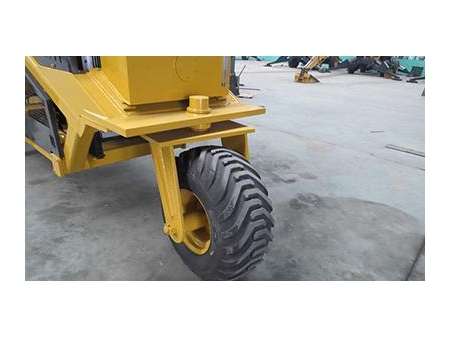

- Large rear wheel
Two prepositive working lights ensure better working conditions for operators to work at night.

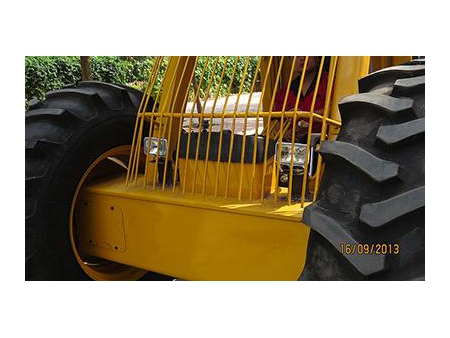

- Two prepositive working lights
5. The worktable is controlled by a microcomputer making the water temperature, the oil temperature and the work chronograph be clear at a glance.
6. The hydraulic system of HY 5800 wood log grappler loader adopts forced air-cooled heat exchanger, available in ventilation and heat dissipation under high temperature working conditions, keeping temperature of hydraulic oil around 80°.
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
