ZDR is a kind of directly operated 3-way valve used for reducing the pressure of a water or gas loop, with secondary pressure protection device available. It comes with 4 pressure levels and 3 pressure adjustment manners. One-way valve is provided for option.

Main Features
1. The pressure reducing valve is mounted by stacking
2. Ports A, B, and P are set for pressure relieving
3. 4 pressure levels
4. 3 pressure adjustment manners
5. One-way valve optional

Technical Parameters of Pressure Reducing Valve ZDR
Dimension
6, 10
Max pressure (PMAX) bar 21
Max flow (qvmax) l/min 30/50/80

For more details, please download the PDF file

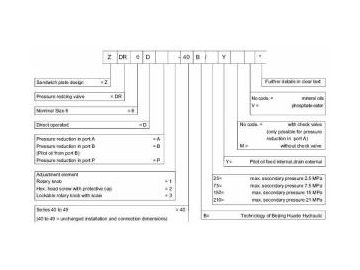

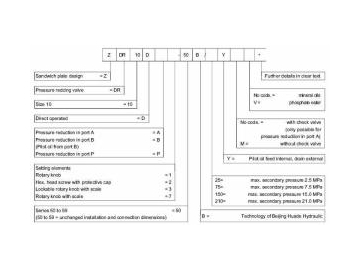

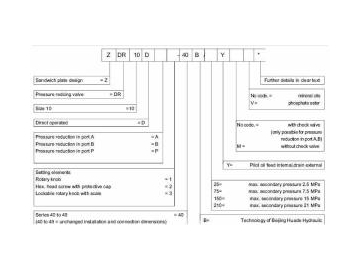

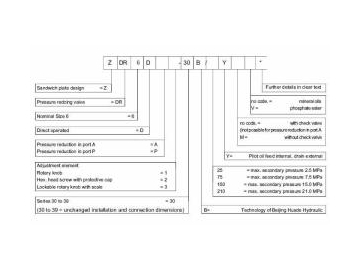

How to Choose the Right Specification
You can determine the model you want according to the table below. Please feel free to contact us if you have any questions.

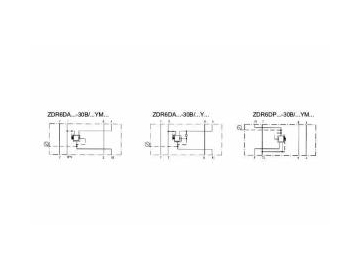

ZDR6-30B/ Direct Operated Pressure Reducing Valve

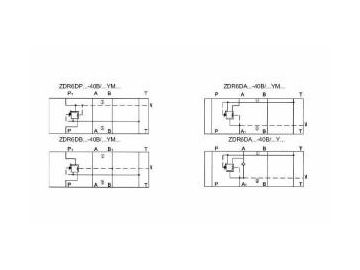

ZDR6-40B/ Direct Operated Pressure Reducing Valve

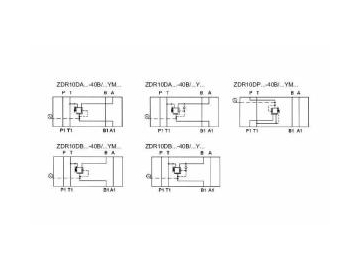

ZDR10-40B/ Direct Operated Pressure Reducing Valve

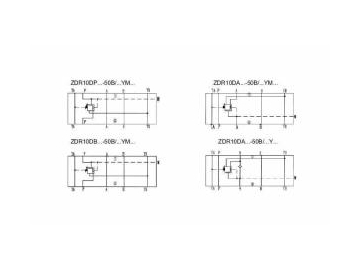

ZDR10DP-50B/ Direct Operated Pressure Reducing Valve

After Sales Service
1. Our valve product comes with 1 year warranty. If there are any quality issues during the warranty period, we will replace or repair the accessories for free
2. We commit that your email will be replied once we have received it, and we will come up with a solution for your problems as soon as possible
