JAC-Z638KM Zirconium Oxide Mounted Flap Wheels Manufacturer

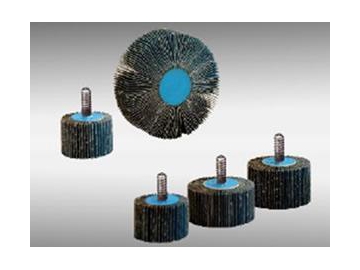

JAC-Z638KM Zirconium Oxide Mounted Flap Wheels

: http://indus-abrasives.com/1-2-2-3-zirconium-oxide-mounted-flap-wheels.html

Availability

Product Code	JAC-Z618GM	JAC-Z628SM	JAC-Z638KM
Abrasive Grains	Standard Zirconium Oxide	Premium Zirconium Oxide	Premium Zirconium Oxide
Backing Cloth Type	X-Flex cotton	X-Flex cotton	X-Flex cotton
Flap Mounted Version	Single	Single	Single
Straight Steel Shank Size	Threaded Shank 1/4'-20	Threaded Shank 1/4'-20	Threaded Shank 1/4'-20

BRITSH SIZE	METRIC SIZE	OPT	MAX	STD	GRIT	PART #	PART #	PART #
( D x W x S )	( D x W x S )	RPM	RPM	PACK	GRIT	PART #	PART #	PART #
1" x 1/2" x 1/4"-20	25 x 13 x Th	20,000	30,000	10	40	64056	64057	64058
					60	64069	64060	64061
					80	64072	64073	64074
					100	64085	64086	64087
					120	64098	64099	64090
1" x 1" x 1/4"-20	25 x 25 x Th	20,000	30,000	10	40	64101	64102	64103
					60	64114	64115	64116
					80	64127	64128	64129
					100	64130	64131	64132
					120	64143	64144	64145
1-1/2"x5/8"x1/4"-20	40 x 15 x Th	20,000	30,000	10	40	64156	64157	64158
					60	64169	64160	64161
					80	64172	64173	64174
					100	64185	64186	64187
					120	64198	64199	64190
1-1/2" x 1" x 1/4"-20	40 x 25 x Th	20,000	30,000	10	40	64201	64202	64203
					60	64214	64215	64216
					80	64227	64228	64229
					100	64330	64331	64332
					120	64343	64344	64345
2" x 1/2" x 1/4"	50 x 13 x Th	15,000	25,000	10	40	64356	64357	64358
					60	64369	64360	64361
					80	64372	64373	64374
					100	64385	64386	64387
					120	64398	64399	64390
2" x 3/4" x 1/4"	50 x 20 x Th	15,000	25,000	10	40	64401	64402	64403
					60	64414	64415	64416
					80	64427	64428	64429
					100	64430	64431	64432
					120	64443	64444	64445
2" x 1" x 1/4"	50 x 25 x Th	15,000	25,000	10	40	64456	64457	64458
					60	64469	64460	64461
					80	64472	64473	64474
					100	64485	64486	64487
					120	64498	64499	64490
2" x 1-1/2" x 1/4"	50 x 40 x Th	15,000	25,000	10	40	64501	64502	64503
					60	64514	64515	64516
					80	64527	64528	64529
					100	64530	64531	64532
					120	64543	64544	64545
2-1/2" x 1/2" x 1/4"	50 x 13 x Th	14,000	23,000	10	40	64556	64557	64558
					60	64569	64560	64561
					80	64572	64573	64574
					100	64585	64586	64587
					120	64598	64599	64590
2-1/2" x 1" x 1/4"	50 x 25 x Th	14,000	23,000	10	40	64601	64602	64603
					60	64614	64615	64616
					80	64627	64628	64629
					100	64630	64631	64632
					120	64643	64644	64645
3" x 1/2" x 1/4"	75 x 13 x Th	13,000	20,000	10	40	64656	64657	64658
					60	64669	64760	64761
					80	64772	64773	64774
					100	64785	64786	64787
					120	64798	64799	64790
3" x 3/4" x 1/4"	75 x 20 x Th	13,000	20,000	10	40	64801	64802	64803
					60	64814	64815	64816
					80	64827	64828	64829
					100	64830	64831	64832
					120	64843	64844	64845
3" x 1" x 1/4"	75 x 25 x Th	13,000	20,000	10	40	64856	64857	64858
					60	64869	64860	64861
					80	64872	64873	64874
					100	64885	64886	64887
					120	64898	64899	64890
