Ammonia Evaporator

: http://freezingsolution.com

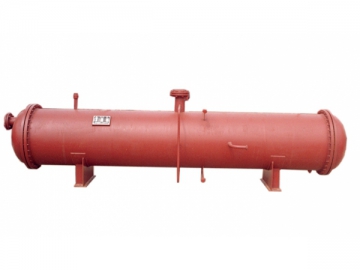

1. Flooded Evaporator

Models: ZFM30 /ZFM56 /ZFM90 /ZFM120 /ZFM160 /ZFM200 /ZFM250 /ZFM300 /ZFM360 /ZFM420 /ZFM600 /ZFM700 /ZFM800

Specifications of the Ammonia Evaporator
Accepts refrigerant R717 (ammonia)
Heat exchanger area: 30m2~800m2
Nominal heat exchanger power: 75KW~2000KW
Design pressure for shell: 1.4Mpa
Design pressure for tube: 0.6Mpa

2. Vertical Evaporator

Models: ZFL30 /ZFL60 /ZFL90 /ZFL120 /ZFL160 /ZFL200 /ZFL240 /ZFL320 /ZFL360 /ZFL420 /ZFL480 /ZFL520 /ZFL600

Specifications of the Ammonia Evaporator
Accepts refrigerant R717 (ammonia)
Heat exchanger area: 30m2~600m2
Nominal heat exchanger power: 90KW~1580KW
Design pressure: 1.6Mpa

Uses
Turns salt water(brine) into ice, or provides pre-cooled water

3. Siphon Evaporator

Models: ZFH30 /ZFH56 /ZFH90 /ZFH120 /ZFH160 /ZFH200 /ZFH250 /ZFH300 /ZFH360 /ZFH420

Specifications of the Ammonia Evaporator
Accepts refrigerant R717 (ammonia)
Heat exchanger area: 30m2~420m2 , shell and tube heat exchanger
Normal heat exchanger power: 160KW~2225KW
Design pressure for shell: 1.4Mpa
Design pressure for tube: 0.6Mpa
Uses: To make ice or icy water
