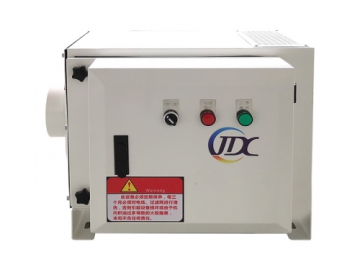

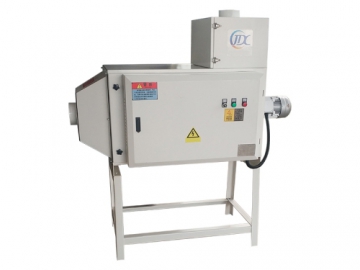

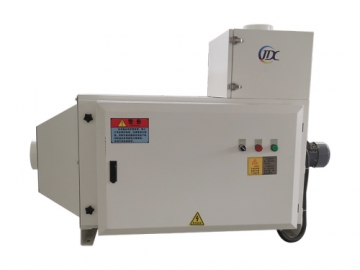

Electrostatic oil mist collector is known for its features of minimal flow resistance, and no need for filter media changing, thus resulting in extremely low operation and maintenance costs. This oil mist collector can capture particles of 0.01 µm in size, and directly transfers purified air to your production workshop. Our electrostatic oil mist collectors are available in flow rate ranging between 500m³/h and 50000m³/h.

Applications

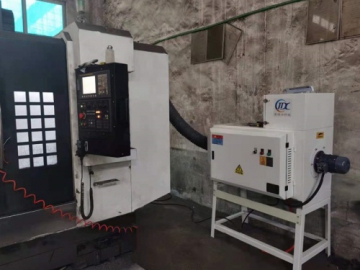

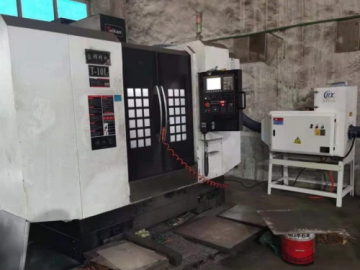

Electrostatic oil mist collector is typically used for filtration of oil mist from lathes, milling machines, drilling machines, grinding machines, cold heading machines, heat treatment machines, die casting machines, vacuum pumps, etc.

Specifications
Model: JDX-12K

Input power: 220V/50HZ
Air flow CMH: 3500
Filtration efficiency: 95%
Resistance: 160
Machine dimensions (W×L×H)mm: 986×1172×702
Rated power: 140
Quantity of high voltage power supply: 2
Weight (kg): 177
Model: JDX-16K (horizontal)

Input power: 220V/50HZ
Air flow CMH: 5000
Filtration efficiency: 95%
Resistance: 160
Machine dimensions (W×L×H) mm: 986×1554×702
Rated power: 192
Quantity of high voltage power supply: 2
Weight (kg): 234
Model: JDX-16K (vertival)

Input power: 220V/50HZ
Air flow CMH: 5000
Filtration efficiency: 95%
Resistance: 160
Machine dimensions (W×L×H) mm: 986×862×702
Rated power: 192
Quantity of high voltage power supply: 2
Weight (kg): 234
Model: JDX-20K

Input power: 220V/50HZ
Air flow CMH: 8000
Filtration efficiency: 95%
Resistance: 145
Machine dimensions (W×L×H) mm: 986×1072×1273
Rated power: 280
Quantity of high voltage power supply: 4
Weight (kg): 398
Model: JDX-24K

Input power: 220V/50HZ
Air flow CMH: 10000
Filtration efficiency: 95%
Resistance: 150
Machine dimensions (W×L×H) mm: 986×172×273
Rated power: 332
Quantity of high voltage power supply: 4
Weight (kg): 405
Model: JDX-28K

Input power: 220V/50HZ
Air flow CMH: 14000
Filtration efficiency: 95%
Resistance: 140
Machine dimensions (W×L×H) mm: 986×1364×1273
Rated power: 350
Quantity of high voltage power supply: 4
Weight (kg): 525
Model: JDX-32K

Input power: 220V/50HZ
Air flow CMH: 18000
Filtration efficiency: 95%
Resistance: 145
Machine dimensions (W×L×H) mm: 986×1556×1273
Rated power: 384
Quantity of high voltage power supply: 4
Weight (kg): 515
Model: JDX-48K

Input power: 220V/50HZ
Air flow CMH: 25000
Filtration efficiency: 95%
Resistance: 150
Machine dimensions (W×L×H) mm:986×1556×2050
Rated power: 576
Quantity of high voltage power supply: 6
Weight (kg): 772
Features

Stable High Voltage Power Supply
High stability, over 20 years of proven performance
Automatic protection and alarming against short circuit caused by improper maintenance
Alarm delay setting

High Efficiency of Oil Mist Collection and Filtration
Based on the principle of aerodynamics and vortex oil mist separation technology, high concentration mist can be completely purified without maintenance during the filtration process
In compliance with IEC 60034-30:2008 and IEC 60034-21:2007 standards, Eff1 high efficiency motor can save energy of 15%
Safety switch can protect operators from high-voltage electric shock accidents caused by improper operation

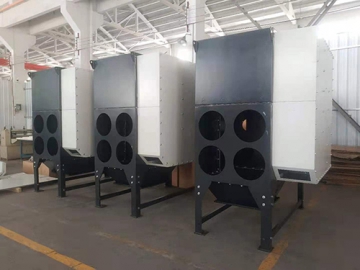

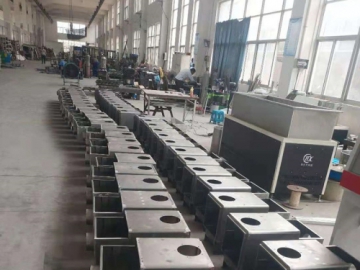

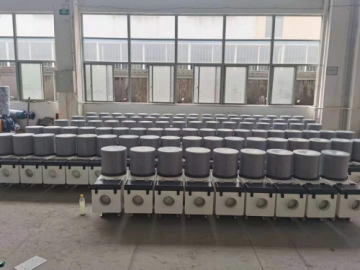

Oil Mist Collector Production Workshop
