Integral Drill Rod

: http://max-drilling.com

Integral drill steel rods are used by hand held drill machines in underground mining and for small hole drilling. They are often used on small power rock drills, such as air leg rock drills and hand held rock drills. According to application needs, different lengths are available, ranging from 600 to 9,600mm.

Features & Benefits
Wide selection of rods
High quality materials

Specifications:
(1)Steel grade: 95CrMo equivalent to SANDBAR 20 or C253, 55SiMnMo

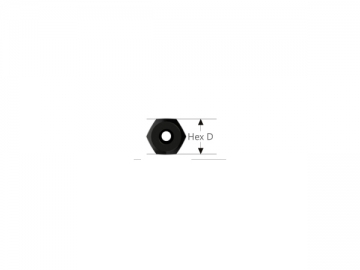

(2)Shank size: hex19mm hex.22mm, hex.25mm including plug hole rod
(3)Head Diameter: 24mm-44mm
(4)Length: 0.4m-6.4m
(5)Package: in wooden case or in bundles.
(6)Productivity: 20000pcs / month

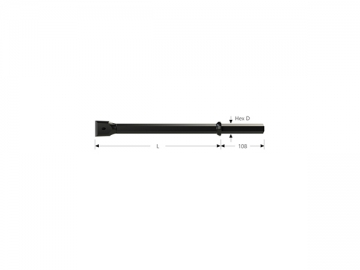

Integral drill steels	Series	Dimensions L			Dimensions D		Part no
Integral drill steels	Series	mm	ft	in	mm	in	Part no
H22*108 mm(4 1/4")	11	800 1600 2400 3200 4000 4800	2 5 7 10 13 5	7 3 10 6 1 -	34 33 32 31 30 29	1 11/32 1 19/64 1 1/4 1 7/32 1 3/16 1 9/64	00220834 00221633 00222432 00223231 00224030 00224829
	12	800 1600 2400 3200 4000 4800	2 5 7 10 13 5	7 3 10 6 1 -	40 39 38 37 36 35	1 37/64 1 17/32 1 1/2 1 29/64 1 27/64 1 3/8	00220840 00221639 00222438 00223237 00224036 00224835
	13	400 800 1200 1600 2000	1 2 3 5 6	4 7 11 3 7	34 33 32 31 30	1 11/32 1 19/64 1 1/4 1 7/32 1 3/16	00220434 00220833 00221232 00221631 00222030
	16	600 1200 1800 2400	2 3 5 7	- 11 7 10	35 34 33 32	1 3/8 1 11/32 1 5/16 1 1/4	00220635 00221234 00221833 00222432
	17	600 1200 1800 2400	2 3 5 7	- 11 7 10	41 40 39 38	1 5/8 1 37/64 1 17/32 1 1/2	00220641 00221240 00221839 00222438
