Multiple Gear Pumps

Multiple Gear Pumps
Multiple Gear Pumps
Multiple Gear Pumps
Request a Quote
Website: http://hydraulic-gearpumps.com/1-2-2-tandem-gear-pump.html
Hydraulic pumps
Technical Information
  • Displacement: 1.4~13.8cm³/rev.
  • Rotation direction: clockwise (D), counter-clockwise(S)
  • Min. speed: 600r/min
  • Max. speed: 2500r/min
  • Peak pressure: 150~250bar

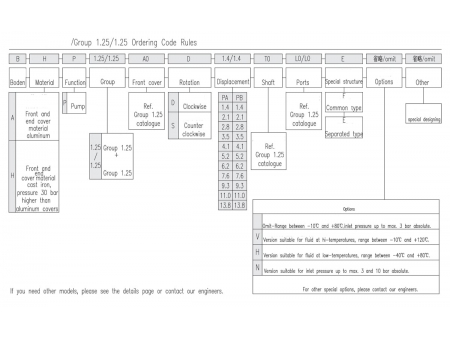

1.25/1.25 Tandem Gear Pump Ordering Code Rules
1.25/1.25 Tandem Gear Pump Standard Product Dimensions
Displacement Max. pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet Oil port code Inlet Outlet
PA PB PA PB LA LB PA D d PB D d
(cm³/rev.) (cm³/rev.) bar bar (r/min) (r/min) mm mm
1.4 1.4 250 250 2500 600 44.1 44.1 L0 G1/2 G3/8 L0 G1/2 G3/8
2.1 2.1 250 250 46.1 46.1 L0 G1/2 G3/8 L0 G1/2 G3/8
2.8 2.8 250 250 48.1 48.1 L0 G1/2 G3/8 L0 G1/2 G3/8
3.5 3.5 250 250 50.1 50.1 L0 G1/2 G3/8 L0 G1/2 G3/8
4.1 4.1 250 250 52.1 52.1 L1 G1/2 G1/2 L1 G1/2 G1/2
5.2 5.2 230 230 55.1 55.1 L1 G1/2 G1/2 L1 G1/2 G1/2
6.2 6.2 230 230 58.1 58.1 L1 G1/2 G1/2 L1 G1/2 G1/2
7.6 7.6 200 200 62.1 62.1 L1 G1/2 G1/2 L1 G1/2 G1/2
9.3 9.3 180 180 67.1 67.1 L1 G1/2 G1/2 L1 G1/2 G1/2
11.0 11.0 170 170 72.1 72.1 L1 G1/2 G1/2 L1 G1/2 G1/2
13.8 13.8 150 150 80.1 80.1 L1 G1/2 G1/2 L1 G1/2 G1/2
Displacement Max. pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet Oil port code Inlet Outlet
PA PB PA PB LA LB PA D d PB D d
(cm³/rev.) (cm³/rev.) bar bar (r/min) (r/min) mm mm
1.4 1.4 250 250 2500 600 44.1 44.1 L0 G1/2 G3/8 L0 G1/2 G3/8
2.1 2.1 250 250 46.1 46.1 L0 G1/2 G3/8 L0 G1/2 G3/8
2.8 2.8 250 250 48.1 48.1 L0 G1/2 G3/8 L0 G1/2 G3/8
3.5 3.5 250 250 50.1 50.1 L0 G1/2 G3/8 L0 G1/2 G3/8
4.1 4.1 250 250 52.1 52.1 L1 G1/2 G1/2 L1 G1/2 G1/2
5.2 5.2 230 230 55.1 55.1 L1 G1/2 G1/2 L1 G1/2 G1/2
6.2 6.2 230 230 58.1 58.1 L1 G1/2 G1/2 L1 Feb-61 G1/2
7.6 7.6 200 200 62.1 62.1 L1 G1/2 G1/2 L1 G1/2 G1/2
9.3 9.3 180 180 67.1 67.1 L1 G1/2 G1/2 L1 G1/2 G1/2
11 11 170 170 72.1 72.1 L1 G1/2 G1/2 L1 G1/2 G1/2
13.8 13.8 150 150 80.1 80.1 L1 G1/2 G1/2 L1 G1/2 G1/2
