FG Series Fluid Bed Dryer Manufacturer

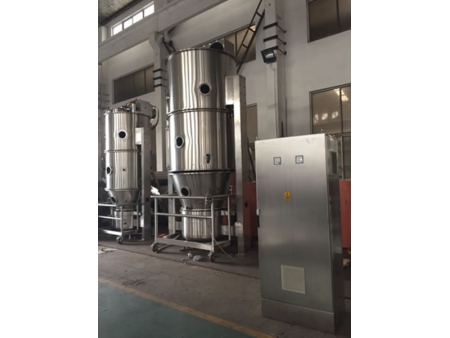

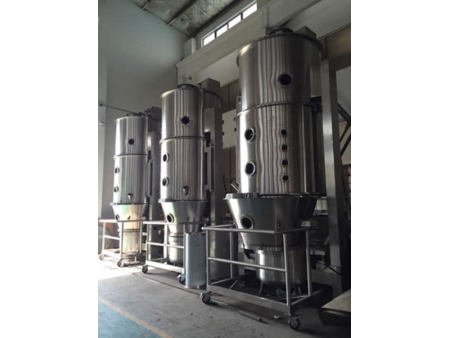

FG Series Fluid Bed Dryer

: http://materialdryer.com/1-2-2-vertical-fluid-bed-dryer/index.html

Applications
The series fluid bed dryer is primarily utilized for drying powders or granules in pharmaceutical, food, chemical and other industrial applications.

Parameters

Specification			3	5	30	60	120	200	300	500	1000
items		unit	3	5	30	60	120	200	300	500	1000
Vessel	Diameter	mm	300	400	700	1000	1200	1400	1600	1800	2200
Vessel	Volume	L	12	22	100	220	420	670	1000	1500	2500
Production capacity	Min	kg/batch	1.5	4	15	30	80	100	150	250	500
Production capacity	Max	kg/batch	4	6	36	72	140	240	360	600	1100
Steam consumption		kg/batch	12	23	70	140	211	282	366	465	800
Amount of compressed air		m³/min	0.3	0.3	0.3	0.6	0.6	0.9	0.9	0.9	1.5
Power of fan		kw	2.2	4	5.5	11	18.5	22	30	45	75
Temperature		℃	Adjustable from room temperature to 120℃
Collection rate		%	>99
Operation time		Min	15-30 (depends on material)
Water Content of final product		%	~0.2 (depends on material)
Noise level		DB	≤75
Height		mm	2100	2300	2500	3000	3300	3800	4000	4800	6200

Features
1. Fluidization bed achieves incredibly fast heat transmission.
2. Sealed negative pressure operation prevents the release of dust.
3. Because of the anti-static material as filter, it is completely safe to operate.
4. The equipment has no blind corners for easy cleaning and maintenance.
5. Fully conforms to GMP requirements.
