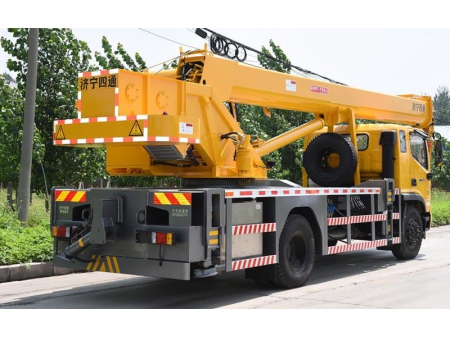

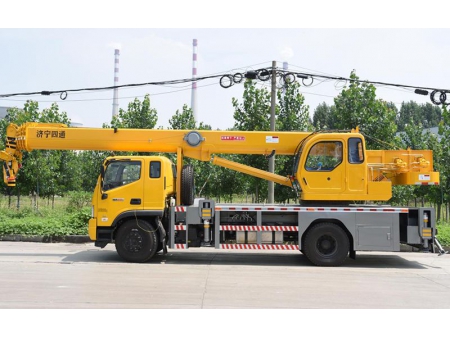

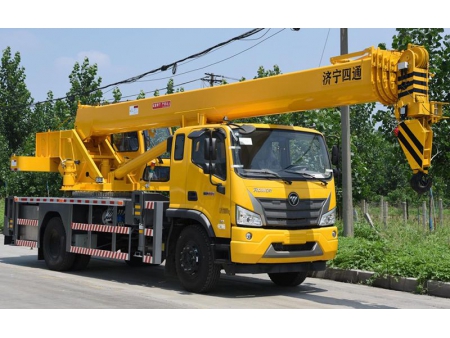

STSQ16F-ES3 16-ton telescopic truck-mounted crane adopts Foton truck chassis that is featured by compact structure and small turning radius, making it able to work stably and efficiently in confined spaces. The telescopic boom can be extended to the maximum length of 36m, and it is equipped with a horizontal supporting cable to enable boom extension and retraction to be achieved freely in horizontal position. This truck-mounted crane is configured with 15kW motor, double-section stabilizer legs and 360-degree rotating platform, providing stable and reliable operation, as well as easy maintenance.


Features
  • 5-section telescopic boom of U-shaped cross section can be extended to the maximum length of 36m, the maximum loading capacity of 16 tons, the maximum working radius of 24m, providing better stability than other mobile cranes with equivalent load capacity;
  • Outrigger system of hydraulic double-section stabilizer legs, wider outrigger span ensures stable operation;
  • This mobile crane can be operated with either fuel oil or electricity, it can be directly connected to 380V standard industrial power for more energy efficient and maintenance-free operation;
  • Standard connectors and cables are configured for easy operation;
  • Newly developed hydraulic system ensures high working efficiency and low energy consumption;
  • Three-pump confluence control technology is adopted to permit higher performance and efficiency of composite action, thus guaranteeing high efficiency and smooth operation;
  • 360-degree rotating platform;
Specifications
Max. loading capacity
16t
Max. lifting height
36m
Longitudinal outrigger span
6.5m
Transversal outrigger span
5.4m
Boom
5 sections (8m per section)
Dimensions
10.9m*2.35m*3.35m
Motor power
15kW, 380V, 50Hz, 3 Phase
Tyres
1000R20
Wheelbase
4500mm
Crane weight
18000kg
