25T Telescopic Truck Cranes, STSQ25DF

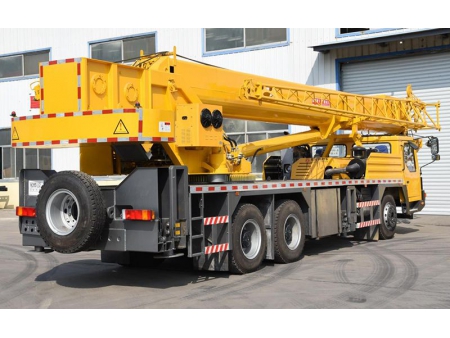

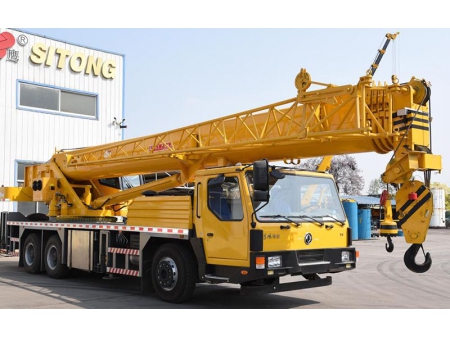

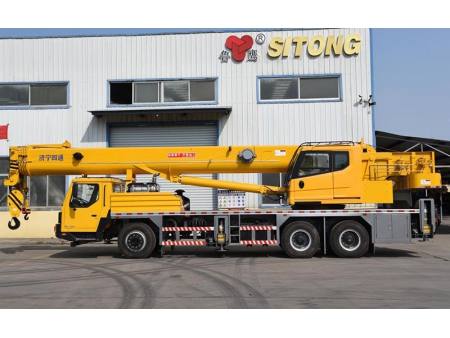

STSQ25DF 25-ton telescopic truck-mounted crane utilizes Dongfeng truck chassis that has compact structure and small turning radius, making it able to work stably and efficiently in limited spaces. The telescopic boom can be extended to the maximum length of 42m, and it is equipped with a horizontal supporting cable to enable boom extension and retraction to be achieved freely in horizontal position. This truck-mounted crane is configured with 15kW motor, double-section stabilizer legs and 360-degree rotating platform, providing stable and reliable operation, as well as easy maintenance.
Features
- 5-section telescopic boom of U-shaped cross section can be extended to its maximum length of 42m, with an auxiliary boom of 9m;
- The maximum loading capacity of 25 tons, the maximum lifting height of 50m, the maximum working radius of 32m, providing better stability than other mobile cranes with equivalent load capacity;
- Outrigger system of hydraulic double-section stabilizer legs, wider outrigger span ensures stable operation;
- This mobile crane can be operated with either fuel oil or electricity, it can be directly connected to 380V standard industrial power for more energy efficient and maintenance-free operation;
- Standard connectors and cables are configured for easy operation;
- Newly developed hydraulic system ensures high working efficiency and low energy consumption;
- Three-pump confluence control technology is adopted to permit higher performance and efficiency of composite action, thus guaranteeing high efficiency and smooth operation;
- 360-degree rotating platform;
- Max. loading capacity
- 25t
- Max. lifting height
- 50m
- Longitudinal outrigger span
- 7m
- Transversal outrigger span
- 5.65m
- Boom
- 5-section boom (42m)
- Dimensions
- 13m*2.5m*3.5m
- Motor power
- 15kW, 380V, 50Hz, 3 Phase
- Engine model
- D6.7NS6B290
- Tyres
- 1000R20
- Wheelbase
- 4600mm 1350mm
- Crane weight
- 33000kg
