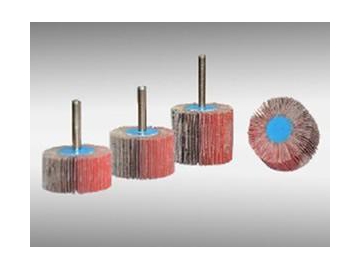

JAC-S978KM Ceramic Alumina Mounted Flap Wheels

JAC-S978KM Ceramic Alumina Mounted Flap Wheels
JAC-S978KM Ceramic Alumina Mounted Flap Wheels
JAC-S978KM Ceramic Alumina Mounted Flap Wheels
JAC-S978KM Ceramic Alumina Mounted Flap Wheels
Availability
Product Code JAC-S968SM JAC-S978KM JAC-S988RM
Abrasive Grains Premium Ceramic Alumina Premium Ceramic Alumina Premium Ceramic Alumina
Backing Cloth Type X-Flex cotton X-Flex cotton X-Flex cotton
Flap Mounted Version Single Single Single
Straight Steel Shank Size Straight Shank-1/8" Straight Shank-1/8" Straight Shank-1/8"
BRITSH SIZE METRIC SIZE OPT MAX STD GRIT PART # PART # PART #
( D x W x S ) ( D x W x S ) RPM RPM PACK
3/4" x 1/2" x 1/8" 22 x 13 x 3.0 mm 20,000 30,000 10 40 93601 93602 93603
60 93614 93615 93616
80 93627 93628 93629
100 93630 93631 93632
120 93643 93644 93645
3/4" x 5/8" x 1/8" 22 x 15 x 3.0 mm 20,000 30,000 10 40 93656 93657 93658
60 93669 93660 93661
80 93672 93673 93674
100 93685 93686 93687
          120 93698 93699 93690
3/4" x 3/4" x 1/8" 22 x 20 x 3.0 mm 20,000 30,000 10 40 93701 93702 93703
60 93714 93715 93716
80 93727 93728 93729
100 93730 93731 93732
120 93743 93744 93745
3/4" x 1" x 1/8" 22 x 25 x 3.0 mm 20,000 30,000 10 40 93756 93757 93758
60 93769 93760 93761
80 93772 93773 93774
100 93785 93786 93787
          120 93798 93799 93890
3/4" x 1-3/16" x1/8" 22 x 30 x 3.0 mm 20,000 30,000 10 40 93901 93902 93903
60 93914 93915 93916
80 93927 93928 93929
100 93930 93931 93932
120 93943 93944 93945
3/4" x 1-1/2" x1/8" 22 x 40 x 3.0 mm 20,000 30,000 10 40 93956 93957 93958
60 93969 93960 93961
80 93972 93973 93974
100 93985 93986 93987
          120 93998 93999 93990
3/4" x 2" x 1/8" 22 x 50 x 3.0 mm 20,000 30,000 10 40 94001 94002 94003
60 94014 94015 94016
80 94027 94028 94029
100 94030 94031 94032
120 94043 94044 94045
