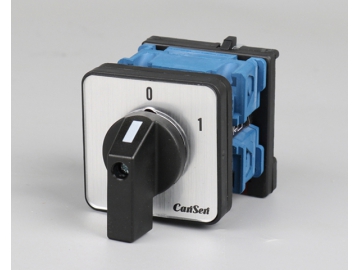

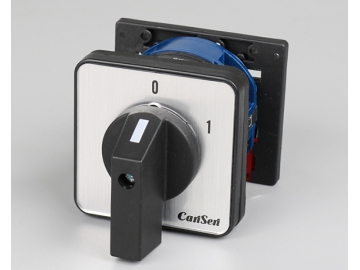

2 pole on-off rotary switch rail mounting type is equipped with rear mounting slots, easy for cam switch installed on the rail directly and sliding on the rail.

LW26-20 0-1 2P (61002)

General Information

Rated working current: 20A
Panel: 48*48mm, 35mm DIN-rail
Diagram code: 0-1 2P (61002)
Color: Blue/black/white
Handle : I type
IP rating : IP20
Layer : 1
Certification: UL, CE, TUV, CCC, ISO

Specification

Specification	LW26-20
Rated insulation voltage	660/690
Rated thermal current	20
Rated working voltage	24	110	240	440
Rated working current
AC-21A			20	20
AC-23A			15	15
AC-2			15	15
AC-3			11	11
AC-4			3.5	3.5
AC-15			5	4
DC-13	12	0.4	0.4
Power
AC-23A			3.7/2.5	7.5/3.7
AC-2			4	7.5
AC-3			3/2.2	5.5/3
AC-4			0.55/0.75	1.5/1.5

LW26-20(X) 0-1 2P (61002)

General Information

Rated working current: 20A
Panel: 48*48mm, 35mm DIN-rail
Diagram code: 0-1 2P (61002)
Color: Blue/black/white
Handle : I type
IP rating : IP20
Layer : 1
Certification: UL, CE, TUV, CCC, ISO

Specification

Specification	LW26-20(X)
Rated insulation voltage	660/690
Rated thermal current	20
Rated working voltage	24	110	240	440
Rated working current
AC-21A			20	20
AC-23A			15	15
AC-2			15	15
AC-3			11	11
AC-4			3.5	3.5
AC-15			5	4
DC-13	12	0.4	0.4
Power
AC-23A			3.7/2.5	7.5/3.7
AC-2			4	7.5
AC-3			3/2.2	5.5/3
AC-4			0.55/0.75	1.5/1.5

LW26-25 0-1 2P (61002)

General Information

Rated working current : 25A
Panel: 48*48mm, 35mm DIN-rail
Diagram code: 0-1 2P (61002)
Color : Blue/black/white
Handle : I type
IP rating : IP20
Layer: 1
Certification: UL, CE, TUV, CCC, ISO

Specification

Specification	LW26-25
Rated insulation voltage	660/690
Rated thermal current	25
Rated working voltage	24	110	240	440
Rated working current
AC-21A			25	25
AC-23A			22	22
AC-2			22	22
AC-3			15	15
AC-4			6.5	6.5
AC-15			8	5
DC-13	20	0.5	0.5
Power
AC-23A			5.5/3	11/5.5
AC-2			5.5	11
AC-3			4/3	7.5/3.7
AC-4			1.5/1.1	3/2.2

LW26-32 0-1 2P (61002)

General Information

Rated working current : 32A
Panel: 64*64mm, 35mm DIN-rail
Diagram code: 0-1 2P (61002)
Color : Blue/black/white
Handle : I type
IP rating : IP20
Layer: 1
Certification: UL, CE, TUV, CCC, ISO

Specification

Specification	LW26-32
Rated insulation voltage	660/690
Rated thermal current	32
Rated working voltage	240	440
Rated working current
AC-21A	32	32
AC-23A	30	30
AC-2	30	30
AC-3	22	22
AC-4	11	11
AC-15	14	6
Power
AC-23A	7.5/4	15/7.5
AC-2	7.5	15
AC-3	5.5/4	11/5.5
AC-4	2.7/1.5	5.5/3

LW26-32F 0-1 2P (61002)

General Information

Rated working current : 32A
Panel: 48*48mm, 35mm DIN-rail
Diagram code: 0-1 2P (61002)
Color : Blue/black/white
Handle : I type
IP rating : IP20
Layer: 1
Certification: UL, CE, TUV, CCC, ISO

Specification

Specification	LW26-32(F)
Rated insulation voltage	660/690
Rated thermal current	32
Rated working voltage	240	440
Rated working current
AC-21A	32	32
AC-23A	30	30
AC-2	30	30
AC-3	22	22
AC-4	11	11
AC-15	14	6
Power
AC-23A	7.5/4	15/7.5
AC-2	7.5	15
AC-3	5.5/4	11/5.5
AC-4	2.7/1.5	5.5/3

LW26-63 0-1 2P (61002)

General Information

Rated working current : 63A
Panel: 64*64mm, 35mm DIN-rail
Diagram code: 0-1 2P (61002)
Color : Blue/black/white
Handle : I type
IP rating : IP20
Layer: 1
Certification: UL, CE, TUV, CCC, ISO

Specification

Specification	LW26-63
Rated insulation voltage	660/690
Rated thermal current	63
Rated working voltage	240	440
Rated working current
AC-21A	63	63
AC-23A	57	57
AC-2	57	57
AC-3	36	36
AC-4	15	15
Power
AC-23A	15/10	30/18.5
AC-2	18.5	30
AC-3	11/6	18.5/11
AC-4	5.5/2.4	7.5/4
