8T Truck Cranes, STSQ8A

: http://heavy-crane.com/1-2-3-8t-truck-mounted-crane-stsq8a.html

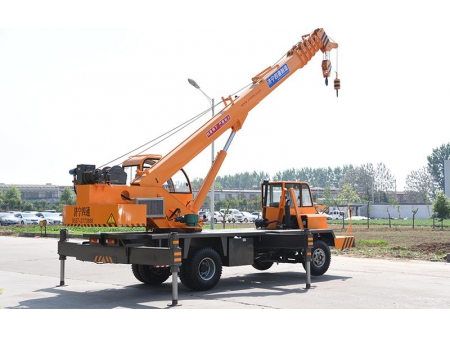

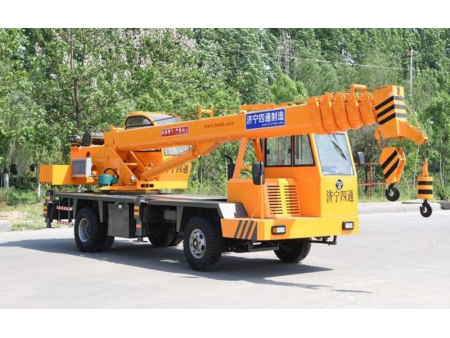

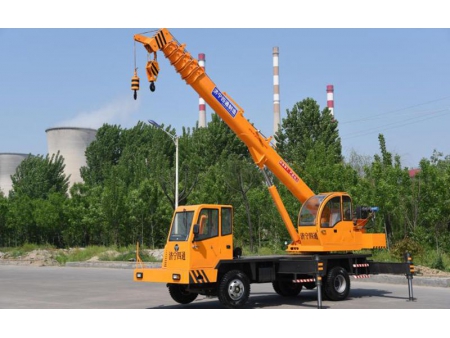

STSQ8A 8-ton truck-mounted crane adopts our self-made chassis that features compact structure and small turning radius, allowing the crane truck to be used in confined spaces and permitted to enter a worksite through narrow areas. The telescopic boom has a horizontal supporting cable that enables the boom to be freely extended and retracted in horizontal position, it can be extended to its maximum length of 31m.

Features

The overall size of 9.1m*2.2m*2.65m makes it possible to put this truck crane in a 40' HC container without dismantling any parts, significantly saving shipping and labor costs;
Equipped with 6-section telescopic boom, can extend to a maximum length of 31m;
Horizontal supporting cable enables the boom to be freely extended and retracted in horizontal position;
Our self-made chassis ensures the stable and reliable performance, and it is equipped with 11kW motor to ensure that the truck-mounted crane can run with either electricity or fuel oil;
360-degree rotating platform;

Specifications

Max. loading capacity: 8t

Max. lifting height: 31m

Longitudinal outrigger span: 3.51m

Transversal outrigger span: 4.25m

Boom: 6 sections (6m per section)

Dimensions: 9.1m*2.2m*2.65m

Motor power: 11kW

Slewing speed: 0-2.8r/min

Engine power: 51kW

Tyres: 825-16

Wheelbase: 3.55m

Crane weight: 8.12t
