Hydraulic Link Clamp

: http://workholding-clamps.com/1-2-3-hydraulic-link-clamp.html

These hydraulic link clamps are made to hold workpieces while the CNC machine is performing a machining operation. The operating pressure of the workholding clamp ranges from 2MPa to 7MPa.

Specifications

Operating pressure: 2MPa-7MPa
Inner diameter: Ø24, Ø25, Ø26, Ø30, Ø32, Ø35, Ø40, Ø44, Ø45, Ø50, Ø55, Ø56, Ø63, Ø68, Ø70, Ø80
Mounting style: top flange/block

Features

Compact design
The area under the flange has a minimized design, enabling a compact fixture design with reduced weight.
Forged integral body
The forged integral structure of link support and cylinder body offers high clamping force while giving a compact size.
Excellent coolant resistance
Unique sealing structure is designed to prevent high pressure coolant and cutting chips from entering inside the link clamp, achieving high sealing performance.
Three lever clamping directions
As viewed from the piping port side, Left (L), Center (C), Right (R). Three lever clamping directions provide high design flexibility.
Direct mount speed control valve
The adjustment of speed can be easily conducted by directly mounting speed control valve to improve synchronization.

Download Detailed Information & Specifications Here

Top Flange Hydraulic Link Clamp with Speed Adjustment

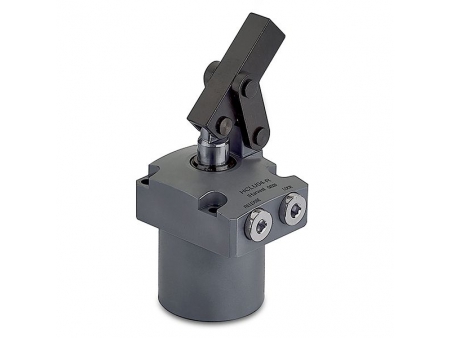

Top Flange Hydraulic Double-Acting Link Clamp

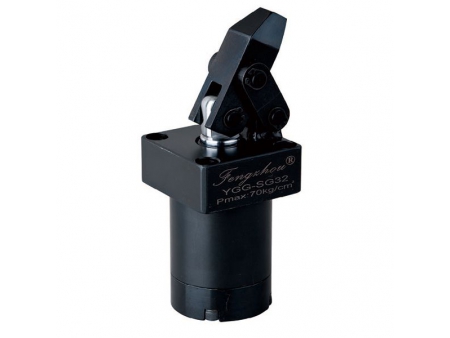

Top Flange Hydraulic Link Clamp

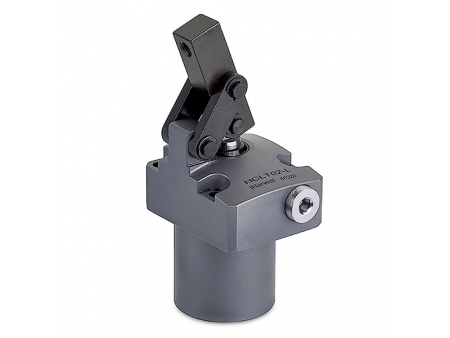

Top Flange Hydraulic Single-Acting Link Clamp

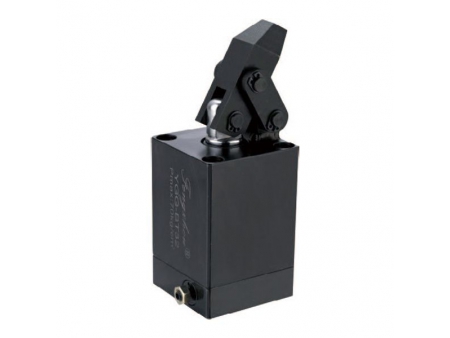

Block Type Hydraulic Link Clamp with Speed Adjustment

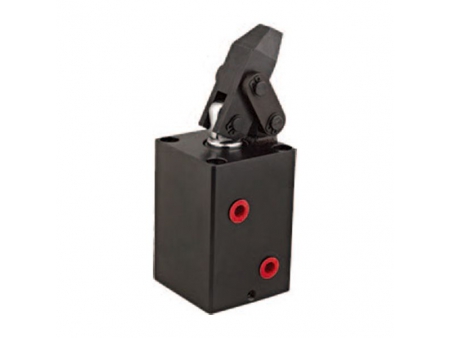

Block Type Hydraulic Link Clamp with Pipe Connection

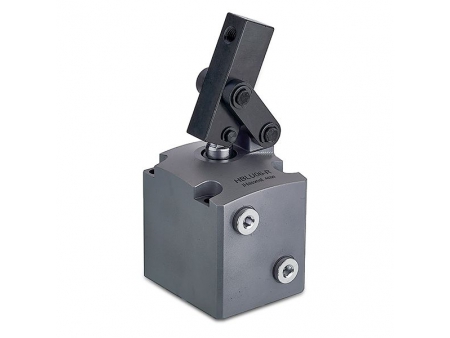

Block Type Hydraulic Link Clamp
