Rollover Car Wash Machine CF-340
CF-340 Rollover car wash machine is a highly cost-effective choice for rollover car washing. This car wash system is equipped with corrosion-resistant ZCF alloy bending frame; 4 sets of powerful and silent fixed blower dryer, with large blowing rate, high drying performance, low noise and eco-friendliness; low error rate, error code and cause display, convenient for troubleshooting.
- Fully automatic PLC control system
- Leaned vertical brushes to fit and cover the car.
- Automatic foam and water wax mixing system.
- Touch-screen control, user-friendly UI, convenient for car washing, system maintaining and data viewing.
| Dimension | L*W*H: 2.61m×3.6m×2.815m, rail dimension L*W: 9m×3.2m | |
| Applicable Car Dimension | L*W*H: 5.2m2.1m×2.1m (car width including folded mirror within 2.1m) | |
| Rail Dimension | L*W: 9m×3.2m | |
| Assembling Range | L*W: 10870mm×4100mm, necessary inspection passages reserved on both side | |
| Voltage | Voltage AC380V 50Hz Capacitance 22KVA (maximum power 17.6kW) | |
| Water Supply | DN25 water flow rate≥80L/min | |
| Air Pressure | 0.75-0.9Mpa（7.5-9kgf/cm²） | |
| Ground Flatness | Deviation≤10mm | |
| Applicable Vehicles | midsize car/minibus within 9 seats | |
| Washing Time | 1 rollover: 2'58'', 2 rollover: 4'48'' | |
| Water Consumption | 75-115L/car | |
| Power Consumption | 0.3-0.5 kwh/car | |
| Power Statistics | Top brush 0.37kW×1 Side brush 0.37kW×2 0.18kW×2 Small brush 0.37kW×2 Motion 0.18kW×2 Blower dryer 4.00kW×4 Water pump 2.20kW | Total power capacity 21.57 kW Maximum power capacity 17.53 kW |
Pre-wash --- foaming --- brushing --- water spraying --- water wax spraying --- drying
-
1. Scan QR code to start washing, unattended operation
Scan QR code to select suitable washing mode, follow the instruction to get prepared, then start car-washing, very convenient operation. -

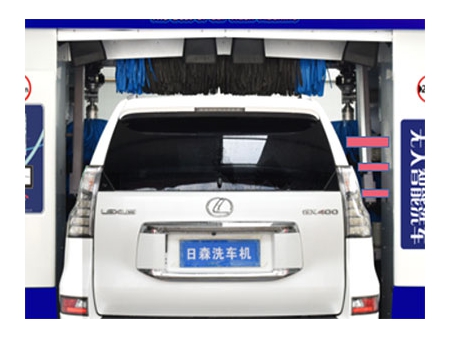

2. 4-th gen opto-electronic sensor technology
The car is scanned by the opto-electronic sensor with high precision before entering the washing system, gets its shape measured for PLC to manipulate the top brush. -

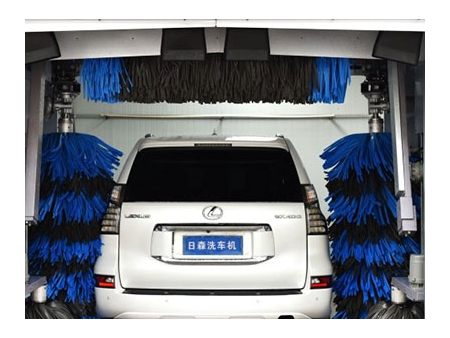

3. Top brush fixed on double arm
Top brush is moved with double arm. The brush gets lifted by air cylinder, moves down by free falling via adjusting counterweight. By contact and interact between rotating top brush and the car, the top brush keeps fitting the shape of the car roof and washing efficiently.
