The VESD STC-A701F static clean ionizing air bar features a copper shell, which is strong and beautiful, provides strong wind power and rapid static and dust elimination. This makes it applicable for automatic static and dust elimination equipment. The static ionizer must be used with a STC-HV501 high-voltage power supply (purchased separately).

Operating voltage 5.6KV
Current consumption 230uA/M
Operating temperature 0-50°C
Weight 2.8kg/M
HV cable length 3 Meters
Maximum length 2 Meters
Air consumption 10Lpm/hole

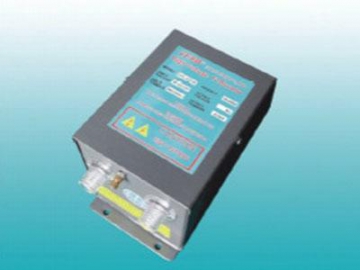

STC-HV501 high voltage power supply
Operating voltage 110V/60Hz or 220V/50Hz
Current consumption 0.23A or 0.12A
Operating temperature range 0-50°C
Weight 3kg
High voltage cable length 1.5Meters
Output voltage 4.6KVx2
Output current Max. 4.5mA


VESD STC-A701 ionizing air bar features a pin header design, which is particularly suitable for wafer processing, slitting, coiling and other processes. The operating distance is 100mm, and it has good effects at distance of 120mm. And this STC-A701 ionizing air bar need to be used with STC-HV505 high voltage power supply (it should be purchased additionally).

Operating voltage 5.6KV
Current consumption 230uA/M
Operating temperature 0-50°C
Weight 1.6kg
High voltage cable length 3Meters
Max. length 2 Meters

HTC - HV 502 high voltage power supply
Operating voltage 110V/60Hz or 220V/50Hz
Current consumption 0.29A or 0.17A
Operating temperature range 0-50°C
Weight 3kg
High voltage cable length 1.5Meters
Output voltage 5.6KVx2
Output current Max. 4.5mA


The VESD STC-B701F static clean ionizing air bar is equipped with a built-in unique high- volume windpipe, allowing it to rapidly neutralize ions. The ion needle is wrapped in a hard aluminum shell.

But this static ionizer must be used with STC-HV504 high-voltage power supply (it need to be purchased separately).

Operating voltage 7.0KV
Current consumption 0.4uA
Operating temperature range 22-25°C
High voltage cable length 3 Meters
Max. length 1.3 Meters
Operating relative humidity <60%RH

HTC-HV504 high voltage power supply
Operating voltage 110V/60Hz or 220V/50Hz
Current consumption 0.23A or 0.12A
Operating temperature range 0-50°C
Weight 4.2kg
High voltage cable length 1.5Meters
Output voltage 4.6KVx4 / 5.6KVx4 / 7.0KVx4 Max.4.
Output current 5Ma


VESD STC-B701 static clean ionizing air bar is a rectangular aluminum bar with an aluminum alloy shell and small shape. It fits into a small space, so it is often used in machinery equipment. And this static ionizer need to cooperate with STC-HV504 high-voltage power supply (it should be ordered separately).

Operating voltage 7.0KV
Current consumption 0.52uA
Operating temperature range 22-25°C
High voltage cable length 3 Meters
Production length 0.2m~2m
Operating relative humidity <60%RH

HTC-HV504 high voltage power supply
Operating voltage 110V/60Hz or 220V/50Hz
Current consumption 0.23A or 0.12A
Operating temperature range 0-50°C
Weight 4.2KG
High voltage cable length 1.5Meters
Output voltage 4.6KVx4 / 5.6KVx4 / 7.0KVx4 Max.4.
Output current 5Ma
