SNT1 MIG/MAG Welding Gun

Request a Quote

About Us: http://weldingtoolsmaker.com/2019/1-2-4-1-snt1-twe-welding-gun.html

Technical Data

Cooling Method: Air-Cooled
Rating: C02: 180A
Rating: Mixed Gas: 125A
Duty Cycle: 60%
Wire Size: 0.6-1.2

Model

Description	Length	Part Number
SNT1 Welding Gun c/w Euro Fitting	10ft	SNT1-10E
	12ft	SNT 1-12E
	15ft	SNT 1-15E
SNT1 Welding Gun c/w Tweco Fitting	10ft	SNT1-10T
	12ft	SNT 1-12T
	15ft	SNT 1-15T
SNT1 Welding Gun c/w Lincoln Fitting	10ft	SNT1-10L
	12ft	SNT 1-12L
	15ft	SNT 1-15L
SNT1 Welding Gun c/w Miller Fitting	10ft	SNT1-10M
	12ft	SNT 1-12M
	15ft	SNT 1-15M

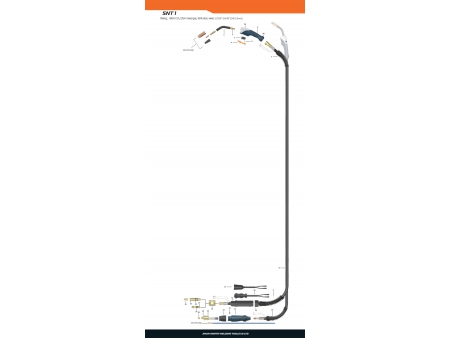

Components

No.	Part Number	Description
1	STF1045	Swan Neck 45°
	STF1060	Swan Neck 60°
2	Q508015S	O-Ring 8x1.5
3	Q711	Switch，OMRON
4	NH010304	Trigger PMS1585C
5	Q60512	Trigger Spring
6	NH0106	Handle
	NH010601	Torch Handle DIY R
	NH010602	Torch Handle DIY L
6a	NH010603	PCB Holder DIY
6b	NH010604	Locking Nut DIY
	Q2602912B	ST Screw M2.9X12
7	BS1101	Front Cable Support Spring
8	STL1010	Cable Assembly 10ft/3m
	STL1012	Cable Assembly 12ft/3.6m
	STL1015	Cable Assembly 15ft/4.5m
9	LYS1201	Back Cable Support Spring
10	MV0004	Miller 4 Pin Plug Assembly Tweco
11	LV0002	2Pin Plug Assembly
12	LYH220201	Back Handle
13	LYH220202	Locking Nut
14	R174-M	Connector Miller Miller
15	Q512526	O-ring 12.5x2.65
16	Q511818	O-ring 11.8x1.8
17	R174-T	Connector Tweco
18	R174-N	Nipple For Miller Connection
19	LYU0001	Locating Sleeve
20	8M9500	Back Cable Support Spring
21	NH0202	Back Handle
	NH020201	Back Handle L
	NH020202	Back Handle R
	NH020204	Locking Nut
22	Q210406B	Screw M4x6
23	NH020203	Gun Plug Nut
24	TEU1001	Euro Gun Plug
25	Q504010	O-ring 4x1
26	TEU1011	Nut M11x1,Black

*Must indicate part number for clear model classification.
