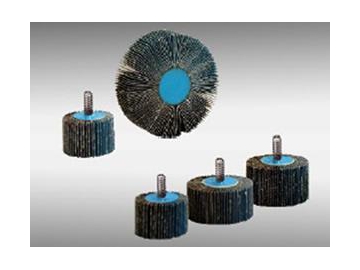

JAC-C838SM Silicon Carbide Mounted Flap Wheels

JAC-C838SM Silicon Carbide Mounted Flap Wheels
JAC-C838SM Silicon Carbide Mounted Flap Wheels
JAC-C838SM Silicon Carbide Mounted Flap Wheels
JAC-C838SM Silicon Carbide Mounted Flap Wheels
: http://indus-abrasives.com/1-2-4-3-silicon-carbide-mounted-flap-wheels.html
Availability
Product Code JAC-C818GM JAC-C828KM JAC-C838SM
Abrasive Grains Silicon Carbide Silicon Carbide Silicon Carbide
Backing Cloth Type X-Flex cotton X-Flex cotton X-Flex cotton
Flap Mounted Version Single Single Single
Straight Steel Shank Size Threaded Shank 1/4'-20 Threaded Shank 1/4'-20 Threaded Shank 1/4'-20
BRITSH SIZE METRIC SIZE OPT MAX STD GRIT PART # PART # PART #
( D x W x S ) ( D x W x S ) RPM RPM PACK
1" x 1/2" x 1/4"-20 25 x 13 x Th 20,000 30,000 10 40 87372 87373 87374
60 87385 87386 87387
80 87398 87399 87390
100 87401 87402 87403
120 87414 87415 87416
150 87427 87428 87429
180 87430 87431 87432
240 87443 87444 87445
320 87456 87457 87458
1" x 1" x 1/4"-20 25 x 25 x Th 20,000 30,000 10 40 87469 87460 87461
60 87472 87473 87474
80 87485 87486 87487
100 87498 87499 87490
120 87501 87502 87503
150 87514 87515 87516
180 87527 87528 87529
240 87530 87531 87532
　 　 　 320 87543 87544 87545
1-1/2"x5/8"x1/4"-20 40 x 15 x Th 20,000 30,000 10 40 87556 87557 87558
60 87569 87560 87561
80 87572 87573 87574
100 87585 87586 87587
120 87598 87599 87590
150 87601 87602 87603
180 87614 87615 87616
240 87627 87628 87629
　 　 　 320 87630 87631 87632
1-1/2" x 1" x 1/4"-20 40 x 25 x Th 20,000 30,000 10 40 87643 87644 87645
60 87656 87657 87658
80 87669 87660 87661
100 87672 87673 87674
120 87685 87686 87687
150 87698 87699 87790
180 87801 87802 87803
240 87814 87815 87816
　 　 　 320 87827 87828 87829
2" x 1/2" x 1/4" 50 x 13 x Th 15,000 25,000 10 40 87830 87831 87832
60 87843 87844 87845
80 87856 87857 87858
100 87869 87860 87861
120 87872 87873 87874
150 87885 87886 87887
180 87898 87899 87890
240 87901 87902 87903
　 　 　 320 87914 87915 87916
2" x 3/4" x 1/4" 50 x 20 x Th 15,000 25,000 10 40 87927 87928 87929
60 87930 87931 87932
80 87943 87944 87945
100 87956 87957 87958
120 87969 87960 87961
150 87972 87973 87974
180 87985 87986 87987
240 87998 87999 87990
　 　 　 320 88001 88002 88003
2" x 1" x 1/4" 50 x 25 x Th 15,000 25,000 10 40 88014 88015 88016
60 88027 88028 88029
80 88030 88031 88032
100 88043 88044 88045
120 88056 88057 88058
150 88069 88060 88061
180 88072 88073 88074
240 88085 88086 88087
　 　 　 320 88098 88099 88090
2" x 1-1/2" x 1/4" 50 x 40 x Th 15,000 25,000 10 40 88101 88102 88103
60 88114 88115 88116
80 88127 88128 88129
100 88230 88231 88232
120 88243 88244 88245
150 88256 88257 88258
180 88269 88260 88261
240 88272 88273 88274
　 　 　 320 88285 88286 88287
2-1/2" x 1/2" x 1/4" 50 x 13 x Th 14,000 23,000 10 40 88298 88299 88290
60 88301 88302 88303
80 88314 88315 88316
100 88327 88328 88329
120 88330 88331 88332
150 88343 88344 88345
180 88356 88357 88358
240 88369 88360 88361
　 　 　 320 88372 88373 88374
2-1/2" x 1" x 1/4" 50 x 25 x Th 14,000 23,000 10 40 88385 88386 88387
60 88398 88399 88390
80 88401 88402 88403
100 88414 88415 88416
120 88427 88428 88429
150 88430 88431 88432
180 88443 88444 88445
240 88456 88457 88458
　 　 　 320 88469 88460 88461
3" x 1/2" x 1/4" 75 x 13 x Th 13,000 20,000 10 40 88472 88473 88474
60 88485 88486 88487
80 88498 88499 88490
100 88501 88502 88503
120 88514 88515 88516
150 88527 88528 88529
180 88530 88531 88532
240 88543 88544 88545
　 　 　 320 88556 88557 88558
3" x 3/4" x 1/4" 75 x 20 x Th 13,000 20,000 10 40 88569 88660 88661
60 88672 88673 88674
80 88685 88686 88687
100 88698 88699 88690
120 88701 88702 88703
150 88714 88715 88716
180 88727 88728 88729
240 88730 88731 88732
　 　 　 320 88743 88744 88745
3" x 1" x 1/4" 75 x 25 x Th 13,000 20,000 10 40 88756 88757 88758
60 88769 88760 88761
80 88772 88773 88774
100 88785 88786 88787
120 88798 88799 88790
150 88801 88802 88803
180 88814 88815 88816
240 88827 88828 88829
320 88830 88831 88832
