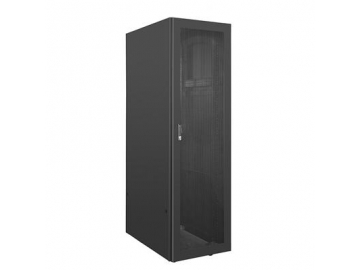

42U / 47U Server Cabinet

: http://data-equip.com/3-data-distribution-cabinet.html

Description
The 42U / 47U server cabinet uses a T-joint welding technique for additional strength, and is used to protect internet data center servers and other network equipment. The side door can be opened at an angle of 180 degrees, and the cabinet can bear up to a 1000kg load. It is in full compliance with ANSI/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41494, PAR7, GB/T3047.2-92 standards and is compatible with ETSI standards.

Material: SPCC high quality cold rolled steel

Surface finish: degreasing, phosphating, spray paint.

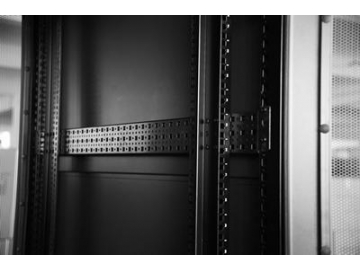

Thickness: rack rails with square holes are 2.0mm. Others are 1.2-1.5mm.

Color: major structure is RAL9004 (black)

Details

Parameter
Nine fold profile cabinet (mm)

Type	Width	Depth	Height	Rack unit
SK06080042	600	800	1975	42U
SK06090042	600	900	1975	42U
SK06100042	600	1000	1975	42U
SK06110042	600	1100	1975	42U
SK06120042	600	1200	1975	42U
SK06080047	600	800	2175	47U
SK06090047	600	900	2175	47U
SK06100047	600	1000	2175	47U
SK06110047	600	1100	2175	47U
SK06120047	600	1200	2175	47U
SK08080042	800	800	1975	42U
SK08090042	800	900	1975	42U
SK08100042	800	1000	1975	42U
SK08110042	800	1100	1975	42U
SK08120042	800	1200	1975	42U
SK08080047	800	800	2175	47U
SK08090047	800	900	2175	47U
SK08100047	800	1000	2175	47U
SK08110047	800	1100	2175	47U
SK08120047	800	1200	2175	47U

Features

The cabinet is made of a 9 fold profile and uses a T-joint welding technique to give it its high structural strength and ability to bear a 1000kg load.
The mesh front single-door and mesh rear double-door ensures the cabinet has a heat dissipation area of more than 65%.
The installation and disassembly of side doors are fast, making installation and maintenance easier and more efficient.

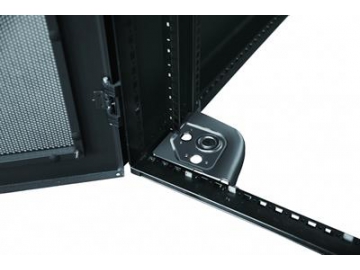

The movable caster and fixed feet can be used simultaneously, making moving of the caster easy.

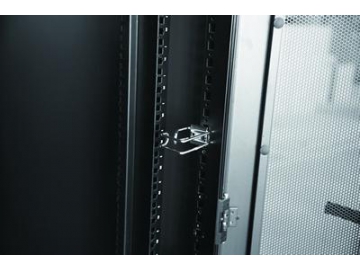

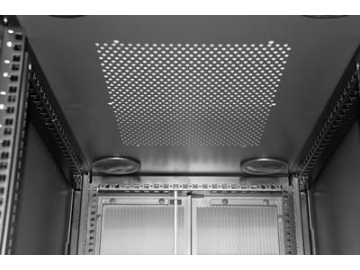

The hinges installed on the door can be changed and the top cable holes are protected by a rubber cover.
Usual depth: 800mm, 900mm, 1000mm and 1100mm.
Usual height: 42U, 47U
The depth and inner height are adjustable.
Ingo will package the cabinet according to your needs, and we will do everything possible to make shipping easy.
If you can't find a suitable size, please contact us to customize the cabinet.
