Brass Shut-off Cocks

Brass Shut-off Cocks
Brass Shut-off Cocks
Brass Shut-off Cocks
Brass Shut-off Cocks
Brass Shut-off Cocks
Brass Shut-off Cocks
Brass Shut-off Cocks
Brass Shut-off Cocks
Brass Shut-off Cocks
: http://valves-custom.com/1-2-6-brass-plug-valve.html
  • Suitable for use with low pressure air, water and fluids
  • Designed for a working pressure of 150 PSI
  • Metal-to -metal seal
  • Not intended for use with natural gas, LPG, nuclear or aircraft applications

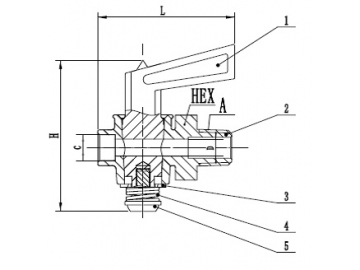

Part # Part Name Material
1 Stem Brass
2 Body Brass
3 Gasket Q235
4 Compressed Spring 65Mn
5 Screw Steel
Inch/Metric (mm)
Size(A)
 C D H L Hex
Inch mm Inch mm Inch mm Inch mm Inch mm
1/8'' 0.28 7.2 0.19 4.70 1.81 46 1.99 50.6 0.67 17
1/4'' 0.28 7.20 0.26 6.50 1.81 46.00 2.06 52.30 0.67 17.00
3/8'' 0.31 7.90 0.28 7.20 2.29 58.20 2.30 58.40 0.83 21.00
1/2'' 0.31 7.90 0.28 7.20 2.50 63.50 3.00 76.20 0.91 23.00

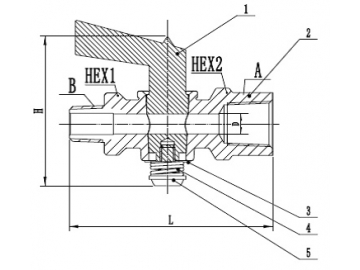

Part # Part Name Material
1 Stem Brass
2 Body Brass
3 Gasket Q235
4 Compressed Spring 65Mn
5 Screw Steel
Inch/Metric (mm)
Size(A)
 B D H L Hex1 Hex2
Inch mm Inch mm Inch mm Inch mm Inch mm
1/4'' 1/4'' 0.22 5.60 1.82 46.20 2.27 57.70 0.67 17.00 0.75 19.00

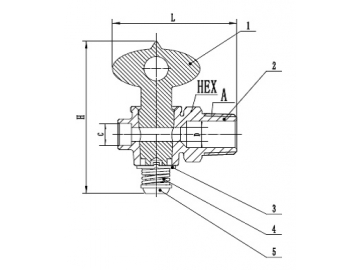

Part # Part Name Material
1 Stem Brass
2 Body Brass
3 Gasket Q235
4 Compressed Spring 65Mn
5 Screw Steel
Inch/Metric (mm)
Size(A) C D H L Hex
Inch mm Inch mm Inch mm Inch mm Inch mm
1/8'' 0.28 7.20 0.19 4.70 1.95 49.50 1.54 39.00 0.67 17.00
1/4'' 0.28 7.20 0.18 4.50 1.95 49.50 1.54 39.00 0.67 17.00

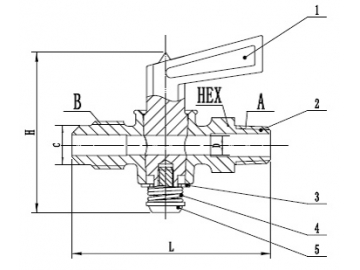

Part # Part Name Material
1 Stem Brass
2 Body Brass
3 Gasket Q235
4 Compressed Spring 65Mn
5 Screw Steel
Inch/Metric (mm)
Size(A) B C D H L Hex
Inch mm Inch mm Inch mm Inch mm Inch mm
1/8'' 1/4'' 0.39 10 0.20 5.1 1.88 47.8 2.16 54.8 0.49 12.5
1/4'' 1/4'' 0.39 10.00 0.26 6.50 1.84 46.80 2.19 55.60 0.67 17.00
1/8'' 5/16'' 0.47 12.00 0.20 5.10 1.88 47.80 2.06 52.30 0.51 13.00
1/4'' 5/16'' 0.47 12.00 0.26 6.50 1.84 46.80 2.13 54.00 0.67 17.00
1/4'' 3/8'' 0.47 12.00 0.26 6.50 1.84 46.80 2.27 57.70 0.67 17.00
3/8'' 1/2'' 0.63 16.00 0.28 7.20 2.27 57.70 2.36 60.00 0.83 21.00
