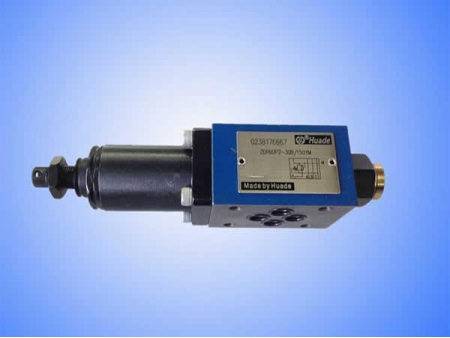

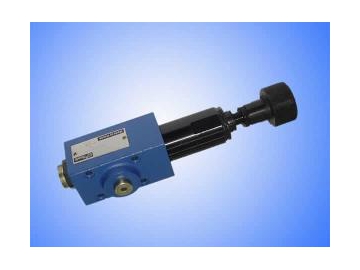

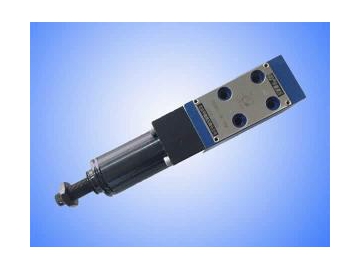

Direct Operated Hydraulic Pressure Reducing Valve
DR-DP is a 3-way pressure reducing valve, which allows overflow in the secondary circuit. It is widely applied in the hydraulic system of handling equipment, construction machinery, lathe and ship, among others.
Main Features
1. 5 pressure levels: 2.5MPa, 7.5MPa, 15MPa, 21MPa, and 31.5MPa
2. The pressure relief valve features small volume, light weight, high safety and easy operation
3. 5 adjustment pressures
| Dimension | 5, 6 | |
| Max pressure (PMAX) | bar | 31.5 |
| Max flow (qvmax) | l/min | 15 |
For more details, please download the PDF file

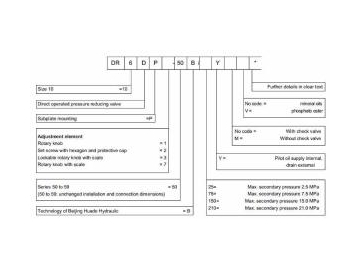

How to Choose the Right Specification
You can determine the model you want according to the table below. Please feel free to contact us if you have any questions.
Characteristic curves (measured at V = 41 mm2/s, t = 50℃)
After Sales Service
1. Our valve product comes with 1 year warranty. If there are any quality issues during the warranty period, we will replace or repair the accessories for free
2. We commit that your email will be replied once we have received it, and we will come up with a solution for your problems as soon as possible
