2 pole 2 position rotary cam switch adopts panel mounting method. There is almost no space between front plate and bodies, which you should pay attention to when choosing the switches. Or you may need , which is different from the rotary cam switch 2 pole 2 position.

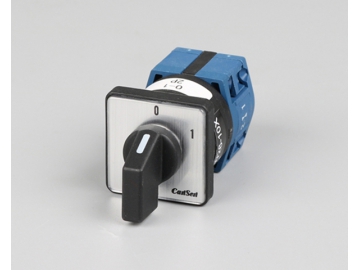

LW26-10 0-1 2P (61002)
General Information
  • Rated working current: 20A
  • Panel: 30*30mm, Single Hole mounting
  • Diagram code: 0-1 2P (61002)
  • Color: Blue/black/white
  • Handle : I type
  • IP rating : IP20
  • Layer : 1
  • Certification: UL, CE, TUV, CCC, ISO
Specification
Specification LW26-10
Rated insulation voltage 660/690
Rated thermal current 10
Rated working voltage 240 440
Rated working current
AC-21A 10 10
AC-23A 7.5 7.5
AC-2 7.5 7.5
AC-3 5.5 5.5
AC-4 1.75 1.75
AC-15 2.5 2.5
Power
AC-23A 1.8 3
AC-2 2.5 3.7
AC-3 1.5 2.2
AC-4 0.37 0.55
LW26-10(X) 0-1 2P (61002)
General Information
  • Rated working current: 25A
  • Panel: 30*30mm, Single Hole mounting
  • Diagram code: 0-1 2P (61002)
  • Color: Blue/black/white
  • Handle : I type
  • IP rating : IP20
  • Layer : 1
  • Certification: UL, CE, TUV, CCC, ISO
Specification
Specification LW26-10(X)
Rated insulation voltage 660/690
Rated thermal current 10
Rated working voltage 240 440
Rated working current
AC-21A 10 10
AC-23A 7.5 7.5
AC-2 7.5 7.5
AC-3 5.5 5.5
AC-4 1.75 1.75
AC-15 2.5 2.5
Power
AC-23A 1.8 3
AC-2 2.5 3.7
AC-3 1.5 2.2
AC-4 0.37 0.55

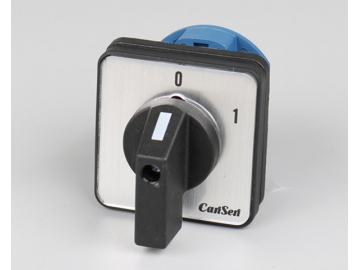

LW26-20 0-1 2P (61002)
General Information
  • Rated working current: 20A
  • Panel: 48*48mm, Single Hole mounting
  • Diagram code: 0-1 2P (61002)
  • Color: Blue/black/white
  • Handle : I type
  • IP rating : IP20
  • Layer : 1
  • Certification: UL, CE, TUV, CCC, ISO
Specification
Specification LW26-20
Rated insulation voltage 660/690
Rated thermal current 20
Rated working voltage 24 110 240 440
Rated working current
AC-21A     20 20
AC-23A     15 15
AC-2     15 15
AC-3     11 11
AC-4     3.5 3.5
AC-15     5 4
DC-13 12 0.4 0.4
Power
AC-23A     3.7/2.5 7.5/3.7
AC-2     4 7.5
AC-3     3/2.2 5.5/3
AC-4     0.55/0.75 1.5/1.5
LW26-20(X) 0-1 2P (61002)
General Information
  • Rated working current: 20A
  • Panel:48*48mm, Single Hole mounting
  • Diagram code: 0-1 2P (61002)
  • Color: Blue/black/white
  • Handle : I type
  • IP rating : IP20
  • Layer : 1
  • Certification: UL, CE, TUV, CCC, ISO
Specification
Specification LW26-20(X)
Rated insulation voltage 660/690
Rated thermal current 20
Rated working voltage 24 110 240 440
Rated working current
AC-21A     20 20
AC-23A     15 15
AC-2     15 15
AC-3     11 11
AC-4     3.5 3.5
AC-15     5 4
DC-13 12 0.4 0.4
Power
AC-23A     3.7/2.5 7.5/3.7
AC-2     4 7.5
AC-3     3/2.2 5.5/3
AC-4     0.55/0.75 1.5/1.5
LW26-25 0-1 2P (61002)
General Information
  • Rated working current: 25A
  • Panel: 48*48mm, Single Hole mounting
  • Diagram code: 0-1 2P (61002)
  • Color: Blue/black/white
  • Handle : I type
  • IP rating : IP20
  • Layer : 1
  • Certification: UL, CE, TUV, CCC, ISO
Specification
Specification LW26-25
Rated insulation voltage 660/690
Rated thermal current 25
Rated working voltage 24 110 240 440
Rated working current
AC-21A     25 25
AC-23A     22 22
AC-2     22 22
AC-3     15 15
AC-4     6.5 6.5
AC-15     8 5
DC-13 20 0.5 0.5
Power
AC-23A     5.5/3 11/5.5
AC-2     5.5 11
AC-3     4/3 7.5/3.7
AC-4     1.5/1.1 3/2.2
LW26-32 0-1 2P (61002)
General Information
  • Rated working current: 32A
  • Panel: 48*48mm, Single Hole mounting
  • Diagram code: 0-1 2P (61002)
  • Color: Blue/black/white
  • Handle : I type
  • IP rating : IP20
  • Layer : 1
  • Certification: UL, CE, TUV, CCC, ISO
Specification
Specification LW26-32
Rated insulation voltage 660/690
Rated thermal current 32
Rated working voltage 240 440
Rated working current
AC-21A 32 32
AC-23A 30 30
AC-2 30 30
AC-3 22 22
AC-4 11 11
AC-15 14 6
Power
AC-23A 7.5/4 15/7.5
AC-2 7.5 15
AC-3 5.5/4 11/5.5
AC-4 2.7/1.5 5.5/3
LW26-32F 0-1 2P (61002)
General Information
  • Rated working current: 32A
  • Panel: 48*48mm, Single Hole mounting
  • Diagram code: 0-1 2P (61002)
  • Color: Blue/black/white
  • Handle : I type
  • IP rating : IP20
  • Layer : 1
  • Certification: UL, CE, TUV, CCC, ISO
Specification
Specification LW26-32F
Rated insulation voltage 660/690
Rated thermal current 32
Rated working voltage 240 440
Rated working current
AC-21A 32 32
AC-23A 30 30
AC-2 30 30
AC-3 22 22
AC-4 11 11
AC-15 14 6
Power
AC-23A 7.5/4 15/7.5
AC-2 7.5 15
AC-3 5.5/4 11/5.5
AC-4 2.7/1.5 5.5/3
LW26-63 0-1 2P (61002)
General Information
  • Rated working current: 63A
  • Panel: 64*64mm
  • Diagram code: 0-1 2P (61002)
  • Color: Blue/black/white
  • Handle : I type
  • IP rating : IP20
  • Layer : 1
  • Certification: UL, CE, TUV, CCC, ISO
Specification
Specification LW26-63
Rated insulation voltage 660/690
Rated thermal current 63
Rated working voltage 240 440
Rated working current
AC-21A 63 63
AC-23A 57 57
AC-2 57 57
AC-3 36 36
AC-4 15 15
Power
AC-23A 15/10 30/18.5
AC-2 18.5 30
AC-3 11/6 18.5/11
AC-4 5.5/2.4 7.5/4
LW26-125 0-1 2P (61002)
General Information
  • Rated working current: 125A
  • Panel: 88*88mm
  • Diagram code: 0-1 2P (61002)
  • Color: Blue/black/white
  • Handle : I type
  • IP rating : IP20
  • Layer : 1
  • Certification: UL, CE, TUV, CCC, ISO
Specification
Specification LW26-125
Rated insulation voltage 660/690
Rated thermal current 125
Rated working voltage 240 440
Rated working current
AC-21A 100 100
AC-23A 90 90
AC-2 90 90
AC-3 75 75
AC-4 30 30
Power
AC-23A 30/15 45/22
AC-2 30 45
AC-3 15/7.5 30/13
AC-4 6/3 12/5.5
LW26-160 0-1 2P (61002)
General Information
  • Rated working current: 160A
  • Panel: 88*88mm
  • Diagram code: 0-1 2P (61002)
  • Color: Blue/black/white
  • Handle : I type
  • IP rating : IP20
  • Layer : 1
  • Certification: UL, CE, TUV, CCC, ISO
Specification
Specification LW26-160
Rated insulation voltage 660/690
Rated thermal current 160
Rated working voltage 240 440
Rated working current
AC-21A 150 150
AC-23A 135 135
AC-2 135 135
AC-3 95 95
AC-4 95 95
Power
AC-23A 37/22 75/37
AC-2 37 55
AC-3 22/11 37/18.5
AC-4 10/4 15/7.5
