Forged Brass Truck Valve
- Suitable for use in the trucking industry for cooling and fuel line applications
- Max. working pressure range: 200 psi
- Temperature Range: -40 °F to 250 °F (-40 °C to 120 °C)

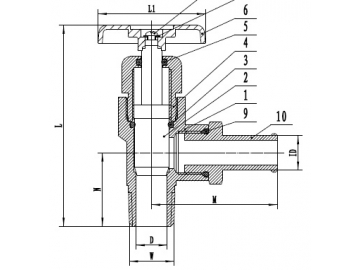

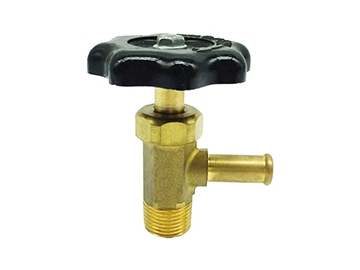

Brass Truck Valve V404P
- Hose x Male Pipe
- Temperature Range: -40 °F to 250 °F (-40 °C to 120 °C)
| Item # | Hose I.D. | Pipe Thread | Flow | L | M | N |
| V404P-6-6 | 3/8 | 3/8 | 0.28 | 2.35 | 1.36 | 0.94 |
| V404P-10-6 | 5/8 | 3/8 | 0.41 | 2.75 | 1.31 | 1.15 |

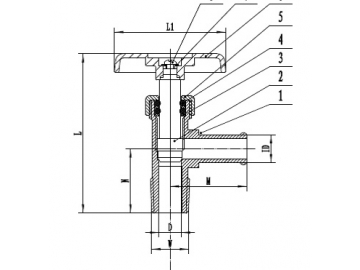

Brass Truck Valve V404PH
- Hose x Male Pipe with Pin Handle
- Temperature range: -40 °F to 250 °F (-40 °C to 120 °C)
| Item # | Hose I.D. | Pipe Thread | Flow | L | M | N |
| V404PH-10-6 | 5/8 | 3/8 | 0.41 | 2.47 | 1.31 | 1.09 |

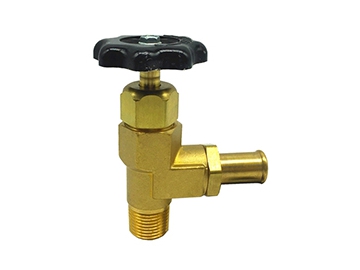

Brass Truck Valve SV404P
- Hose x Male Pipe
- Temperature range: -40 °F to 250 °F (-40 °C to 120 °C)
| Item # | Hose I.D. | Pipe Thread | Flow | L | M | N |
| SV404P-10-8 | 5/8 | 1/2 | 0.47 | 3.71 | 2.31 | 1.34 |
| SV404P-12-6 | 3/4 | 3/8 | 0.44 | 3.73 | 2.31 | 1.34 |
| SV404P-12-8 | 3/4 | 1/2 | 0.56 | 3.73 | 2.31 | 1.34 |

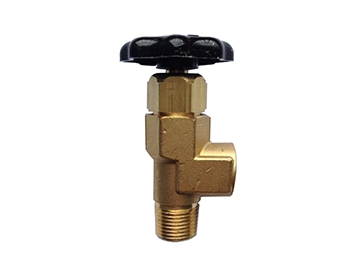

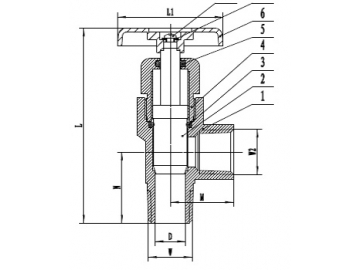

Brass Truck Valve V405P
- Female Pipe x Male Pipe
- Temperature Range: -40 °F to 250 °F (-40 °C to 120 °C)
| Item # | Hose I.D. | Pipe Thread | Flow | L | M | N |
| V405P-6-6 | 3/8 | 3/8 | 0.41 | 2.72 | 0.91 | 1.19 |
| V404P-6-8 | 3/8 | 1/2 | 0.41 | 2.95 | 0.91 | 1.31 |
| V404P-8-8 | 1/2 | 1/2 | 0.56 | 3.15 | 1.17 | 1.34 |
